LDF

The output from the stand-alone LDF configuration is in the link below

Note that LDF is currently run by users. Temporarily, we suggest users walk through the following process:

1. Install LDF and activate cupid-analysis

2. Use the CUPiD/helper_scripts/generate_ldf_config_file.py script to generate a LDF config file based on a CUPiD configuration file.

   • cd CUPiD/examples/external_diag_packages

   • ../../helper_scripts/generate_ldf_config_file.py --cupid-config-loc . --ldf-template ../../externals/LDF/config_clm_unstructured_plots.yaml --out-file LDF_config.yaml

3. Run LDF with the newly created configuration file.

   • ../../externals/LDF/run_adf_diag LDF_config.yaml

Show code cell content

Hide code cell content

import os

from IPython.core.display import HTML, Image
from IPython.display import display
import pandas as pd

Show code cell content

Hide code cell content

ldf_root = "."
case_name = None
base_case_name = None
start_date = ""
end_date = ""
base_start_date = None
base_end_date = None
key_plots = None
# ldf_root will be external_diag_packages/computed_notebooks/LDF/

# Parameters
case_name = "b.e30_alpha08b.B1850C_LTso.ne30_t232_wgx3.313"
base_case_name = "b.e30_alpha08b.B1850C_LTso.ne30_t232_wgx3.308"
case_nickname = "BLT1850_313"
base_case_nickname = "BLT1850_308"
CESM_output_dir = "/glade/campaign/cesm/development/cross-wg/diagnostic_framework/CESM_output_for_testing"
start_date = "0001-01-01"
end_date = "0044-01-01"
climo_start_year = 24
climo_end_year = 44
base_start_date = "0001-01-01"
base_end_date = "0105-01-01"
base_climo_start_year = 85
base_climo_end_year = 105
obs_data_dir = (
    "/glade/campaign/cesm/development/cross-wg/diagnostic_framework/CUPiD_obs_data"
)
ts_dir = None
lc_kwargs = {"threads_per_worker": 1}
serial = False
ldf_root = "../../examples/313v308/LDF_output/"
key_plots = [
    "GPP_ANN_LatLon_Mean.png",
    "ELAI_ANN_LatLon_Mean.png",
    "TOTECOSYSC_GlobalMean_ANN_TimeSeries_Mean.png",
    "RegionalClimo_Amazonia_RegionalClimo_Mean.png",
]
subset_kwargs = {}
product = "/glade/u/home/dsanders/cesm_dev/CUPiD/examples/313v308/computed_notebooks//lnd/LDF.ipynb"

Show code cell content

Hide code cell content

# Want some base case parameter defaults to equal control case values
if base_case_name is not None:
    if base_start_date is None:
        base_start_date = start_date

    if base_end_date is None:
        base_end_date = end_date

# convert start-date and end-date to year range
case_year_range = [int(start_date.split("-")[0]), int(end_date.split("-")[0])]

if (not base_start_date) and (not base_end_date):
    base_case_year_range = None
else:
    base_case_year_range = [
        int(base_start_date.split("-")[0]),
        int(base_end_date.split("-")[0]),
    ]

Show code cell content

Hide code cell content

if base_case_year_range:
    base_case_yr_range_str = f"_{base_case_year_range[0]}_{base_case_year_range[1]}"
    alt_base_case_yr_range_str = (
        f"_{base_case_year_range[0]}_{str(int(base_case_year_range[1])-1)}"
    )
else:
    base_case_yr_range_str = ""
    alt_base_case_yr_range_str = ""


possible_ldf_comparison_names = [
    f"{case_name}_{case_year_range[0]}_{case_year_range[1]}_vs_{base_case_name}{base_case_yr_range_str}"
]
possible_ldf_comparison_names.append(
    f"{case_name}_{case_year_range[0]}_{str(int(case_year_range[1])-1)}_vs_{base_case_name}{base_case_yr_range_str}"
)
possible_ldf_comparison_names.append(
    f"{case_name}_{case_year_range[0]}_{str(int(case_year_range[1])-1)}_vs_{base_case_name}{alt_base_case_yr_range_str}"
)
possible_ldf_comparison_names.append(
    f"{case_name}_{case_year_range[0]}_{case_year_range[1]}_vs_{base_case_name}{alt_base_case_yr_range_str}"
)

Show code cell source

Hide code cell source

ldf_found = False
for ldf_comparison_name in possible_ldf_comparison_names:
    ldf_root_candidate = os.path.join(ldf_root, ldf_comparison_name)
    if os.path.exists(ldf_root_candidate):
        ldf_found = True
        ldf_root = ldf_root_candidate
        display(
            HTML(
                f'<a href="../LDF/{ldf_comparison_name}/website/index.html" target="_blank" style="font-size: 30px">Full LDF output</a>'
            )
        )
        break

if not ldf_found:
    print("No LDF output found for the specified case and date range.")

Full LDF output

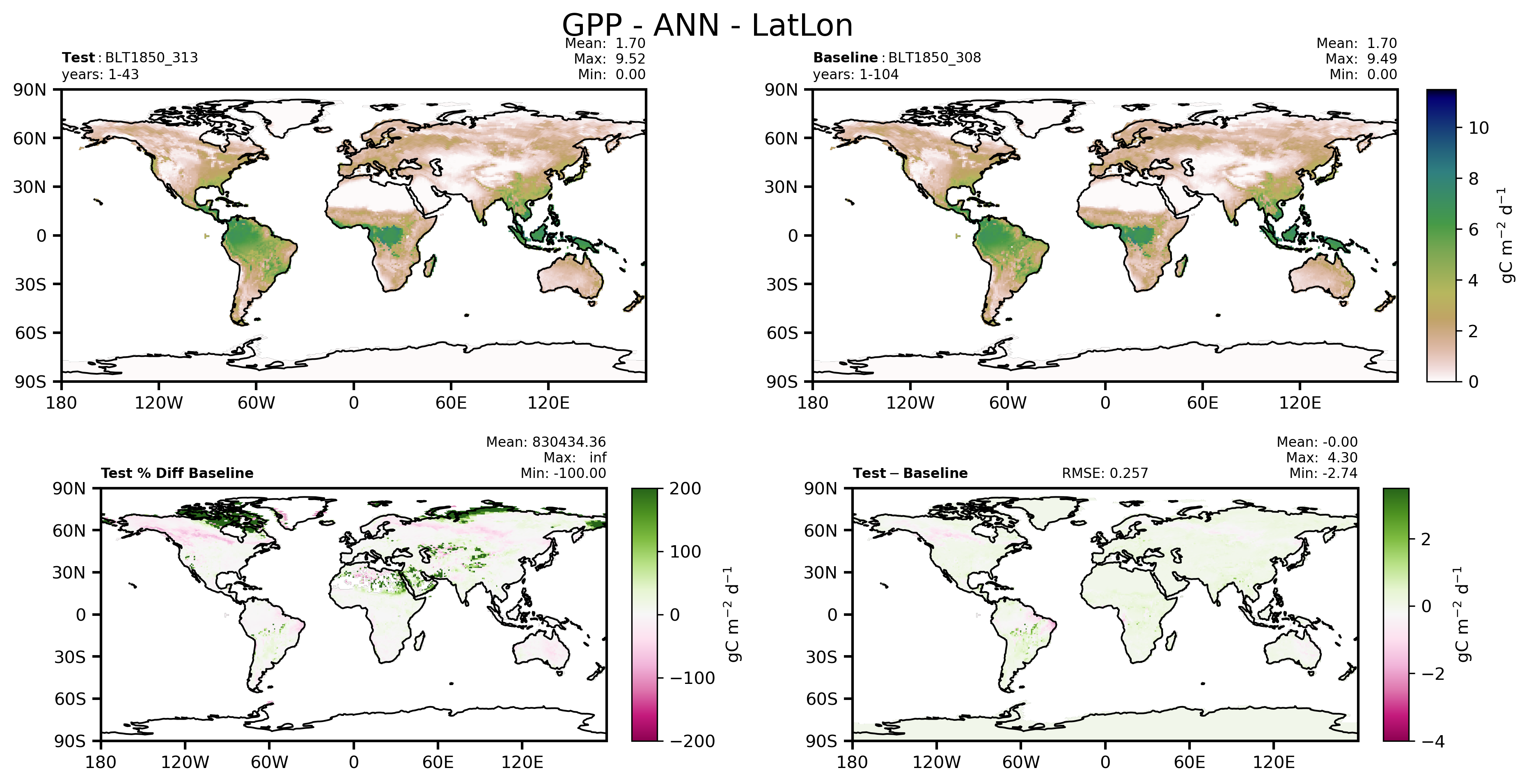

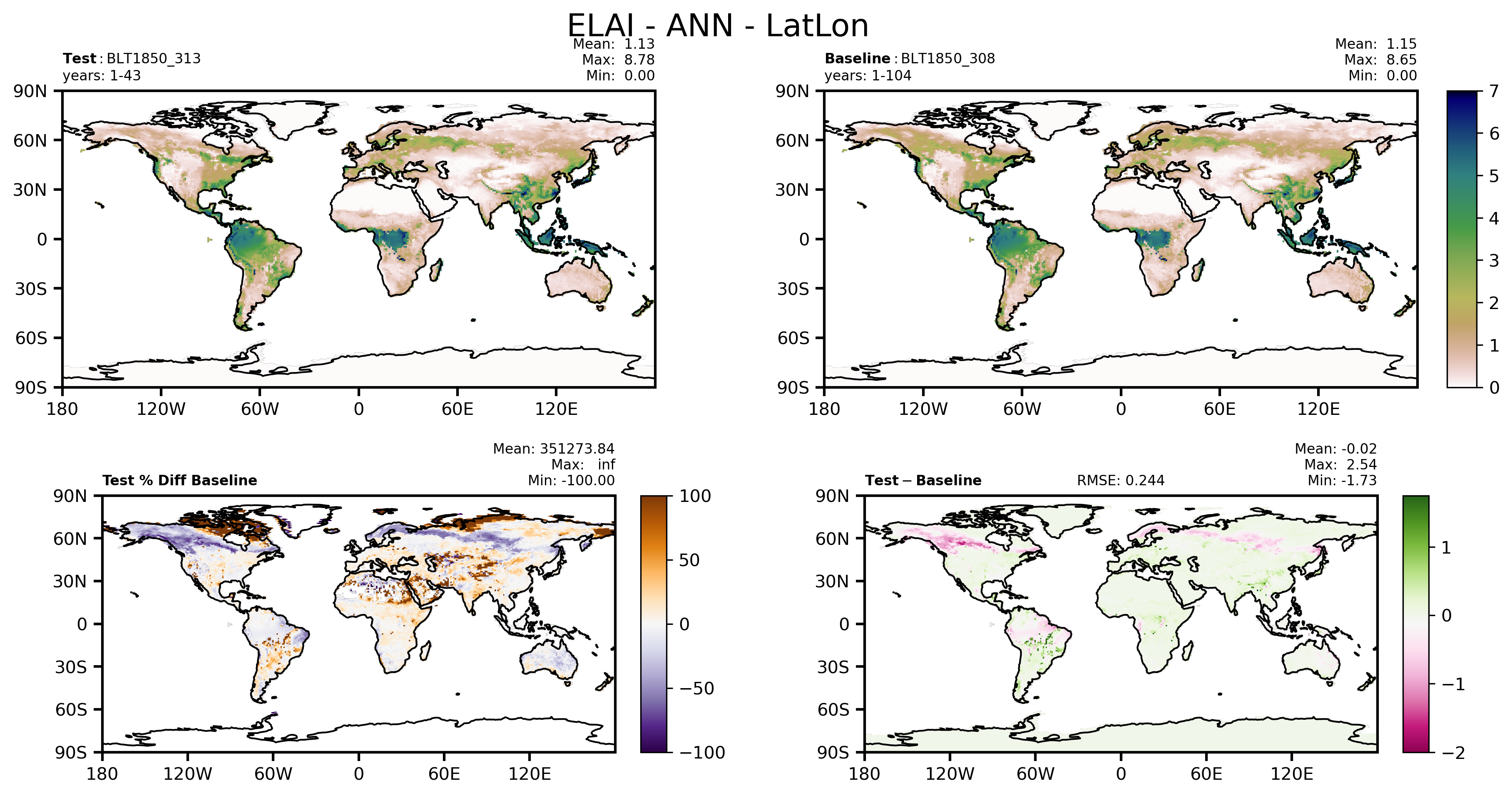

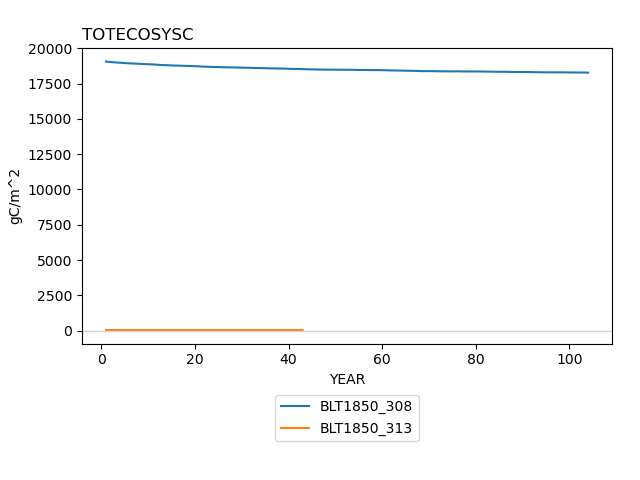

Key Metrics from LDF

Some important things to look at from LDF include a comparison table and a few maps:

Show code cell source

Hide code cell source

comparison_table = os.path.join(ldf_root, "amwg_table_comp.csv")
if os.path.isfile(comparison_table):
    table = pd.read_csv(comparison_table)
    display(HTML(table.to_html(index=False, float_format="{:6g}".format)))

variable	unit	test	control	diff
TSA	K	280.539	280.5	0.039
TV	K	281.162	281.136	0.026
PREC	mm d$^{-1}$	2.282	2.295	-0.013
ELAI	m${-2}$ m${-2}$	1.139	1.162	-0.023
FSDS	W m$^{-2}$	197.501	197.359	0.142
FLDS	W m$^{-2}$	295.572	295.423	0.149
QBOT	kg/kg	0.0065	0.00648	2e-05
ASA	% reflected	29.191	29.131	0.06
RNET	W m$^{-2}$	61.186	70.966	-9.78
FSH	W m$^{-2}$	33.476	33.227	0.249
ET	W m$^{-2}$	36.769	36.912	-0.143
FCTR	W m$^{-2}$	17.118	17.137	-0.019
FGEV	W m$^{-2}$	11.474	11.466	0.008
FCEV	W m$^{-2}$	8.177	8.309	-0.132
QRUNOFF_TO_COUPLER	mm d$^{-1}$	0.955	0.966	-0.011
SNOWDP	m	2.254	2.252	0.002
GPP	PgC y$^{-1}$	92.994	93.576	-0.582
NPP	PgC y$^{-1}$	37.596	37.806	-0.21
NEE	PgC y$^{-1}$	1.741	0.55	1.191
NBP	PgC y$^{-1}$	-2.346	-1.14	-1.206
NPP_NUPTAKE	gC/m^2/s	2.78e-06	2.81e-06	-3e-08
BTRANMN	unitless	0.594	0.586	0.008
TOTECOSYSC	gC/m^2	18680.7	18530.5	150.207
TOTSOMC_1m	PgC	1458.34	1445.32	13.013
ALTMAX	m	31.941	32.163	-0.222
TWS	mm	7550.03	7566.55	-16.516
SOILWATER_10CM	kg/m2	27.799	27.852	-0.053
GRAINC_TO_FOOD	PgC y$^{-1}$	0.43	0.419	0.011
FAREA_BURNED	s-1	2.5e-09	2.46e-09	4e-11

Show code cell source

Hide code cell source

for path_to_key_plot in key_plots:
    full_path = os.path.join(ldf_root, path_to_key_plot)
    if os.path.isfile(full_path):
        display(Image(full_path))
