Mixed layer depth

%load_ext autoreload
%autoreload 2

%%capture
# comment above line to see details about the run(s) displayed
from misc import *
from mom6_tools.m6plot import myStats, annotateStats, xycompare
import cartopy.crs as ccrs
import cartopy.feature
import intake
%matplotlib inline

# load obs-based mld from oce-catalog
obs = 'mld-deboyer-2023-tx2_3v2'
catalog = intake.open_catalog(diag_config_yml['oce_cat'])
print('\n Reading climatology from: ', obs)
mld_obs = catalog[obs].to_dask().where(grd_xr[0].wet > 0.)
# rename coords and and fix time
#mld_obs = mld_obs.rename({'lon' : 'longitude', 'lat' : 'latitude', 'time' : 'month'})
mld_obs = mld_obs.rename({'time' : 'month'})
mld_obs["month"] = np.arange(1,len(mld_obs.month)+1)
months = [0,1,2]
obs_JFM = np.ma.masked_invalid(mld_obs.mld.isel(month=months).mean('month').values)
months = [6,7,8]
obs_JAS = np.ma.masked_invalid(mld_obs.mld.isel(month=months).mean('month').values)
obs_winter = obs_JAS.copy(); obs_summer = obs_JAS.copy()
j = np.abs( grd[0].geolat[:,0] - 0. ).argmin()
obs_winter[j::,:] = obs_JFM[j::,:]
obs_summer[0:j,:] = obs_JFM[0:j,:]

 Reading climatology from:  mld-deboyer-2023-tx2_3v2

Monthly

months = ['January', 'February', 'March', 'April',
          'May', 'June', 'July', 'August', 'September',
          'October', 'November', 'December']

ds = []
for path, case, i in zip(ocn_path, casename, range(len(label))):
  ds.append(xr.open_dataset(path+case+'_MLD_monthly_clima.nc'))

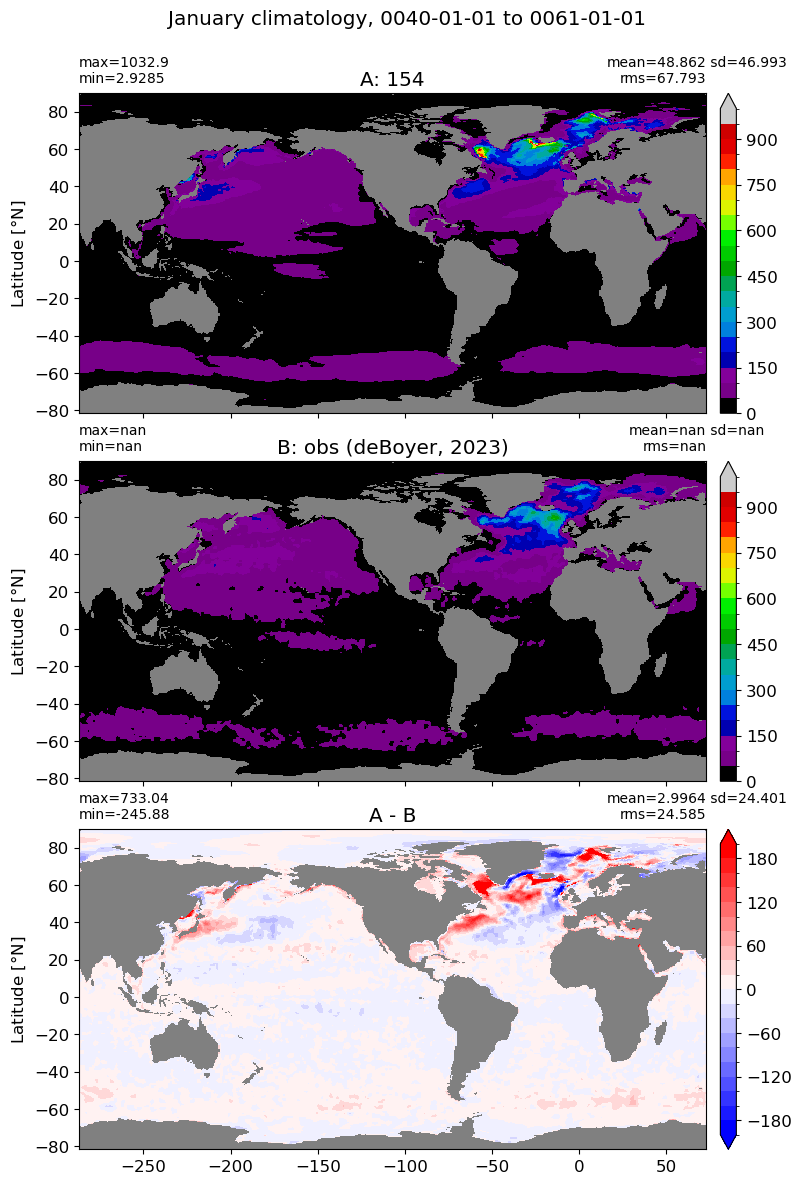

January

def plot_mld_month(m=0):
    for i in range(len(label)):
        model = np.ma.masked_invalid(ds[i].mlotst.isel(month=m).values)
        obs   = np.ma.masked_where(grd[i].wet == 0, mld_obs.mld.isel(month=m).values)
        xycompare(model,
                obs,
                grd[i].geolon, grd[i].geolat, grd[0].areacello,
                title1 = label[i],
                title2 = 'obs (deBoyer, 2023)',
                suptitle=str(months[m]) +' climatology, '+ str(start_date) + ' to ' + str(end_date),
                colormap=plt.cm.nipy_spectral, dcolormap=plt.cm.bwr,
                clim = (0,1000), extend='max',
                dlim=(-200,200))

    fig, ax = plt.subplots(figsize=(8,10))
    for i in range(len(label)):
        ds[i].mlotst.isel(month=m).weighted(grd_xr[i].areacello.fillna(0)).mean('xh').plot(y="yh",
                                            ax=ax, label=label[i], lw=2)

    mld_obs.mld.isel(month=m).weighted(grd_xr[0].areacello.fillna(0)).mean('xh').plot(y="yh",
                                            ax=ax, label='obs (deBoyer, 2023)', lw=4)
    ax.set_title('Zonally averaged MLD, '+str(months[m]))
    ax.grid()
    ax.legend();
    return

plot_mld_month(m=0)

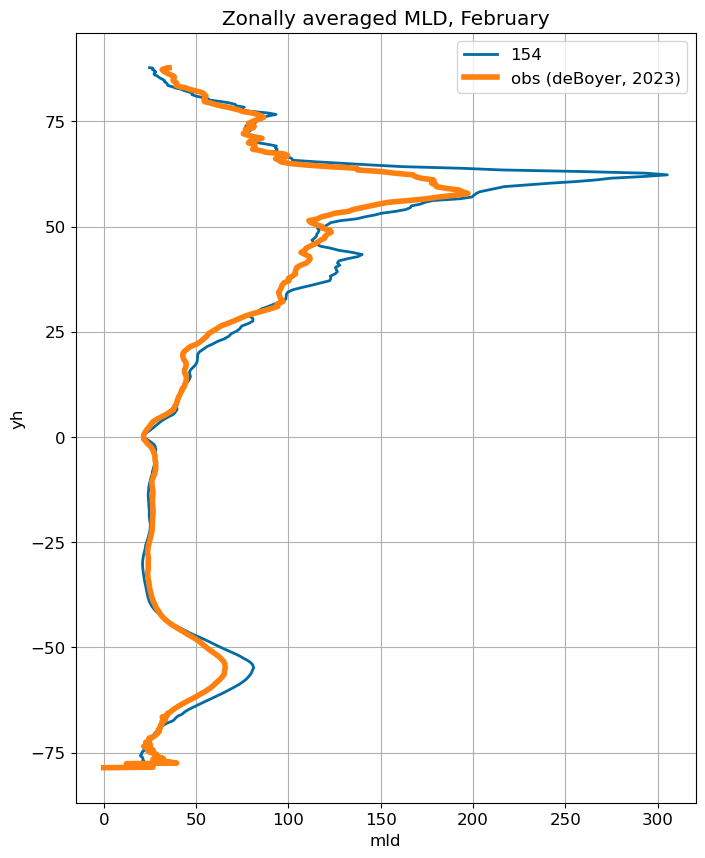

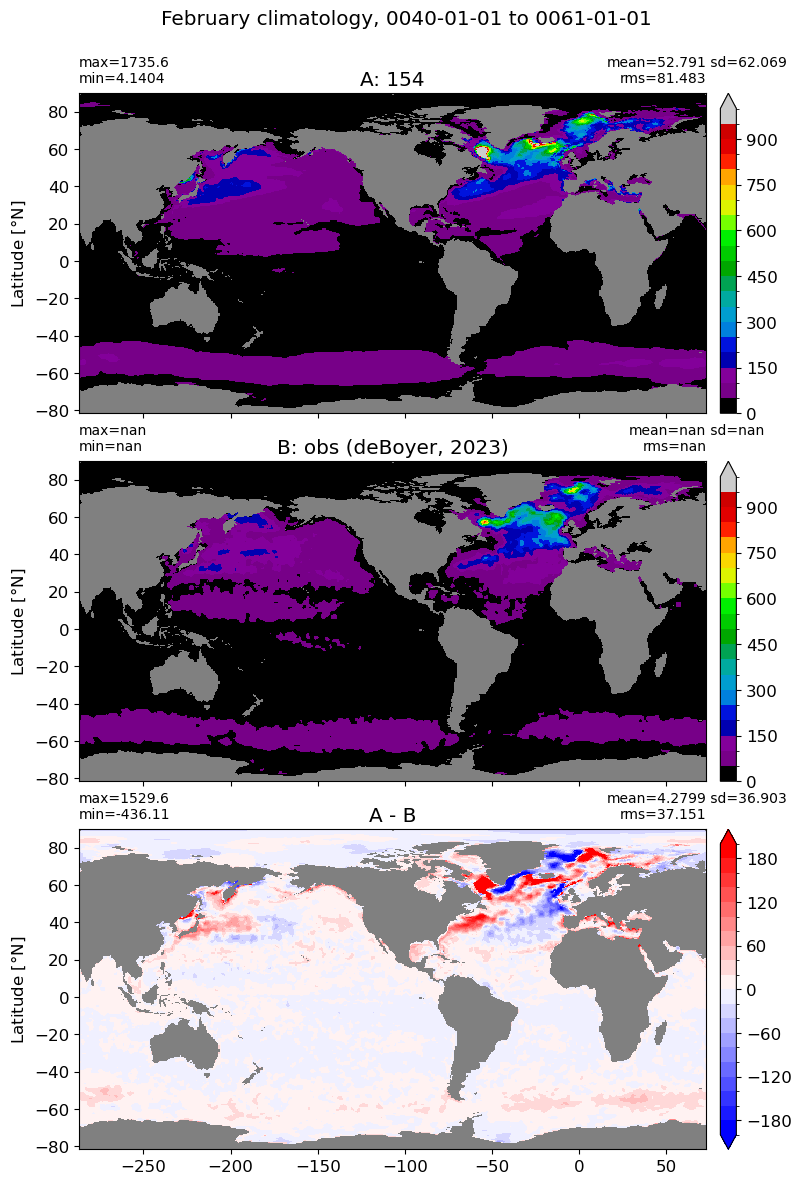

February

plot_mld_month(m=1)

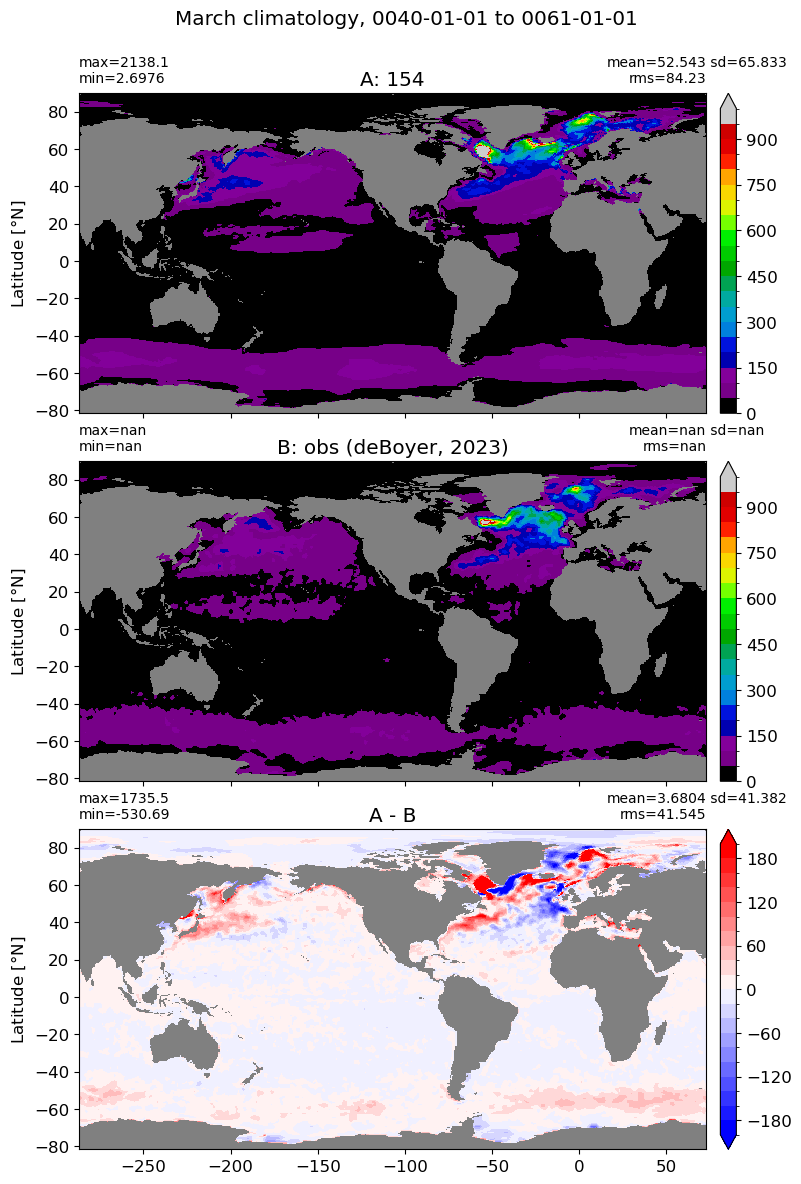

March

plot_mld_month(m=2)

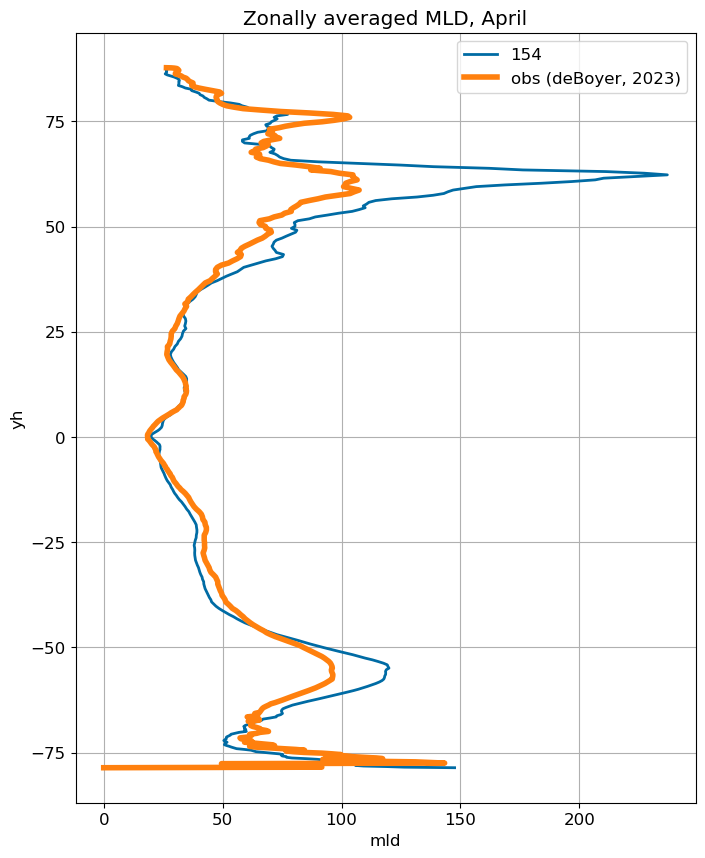

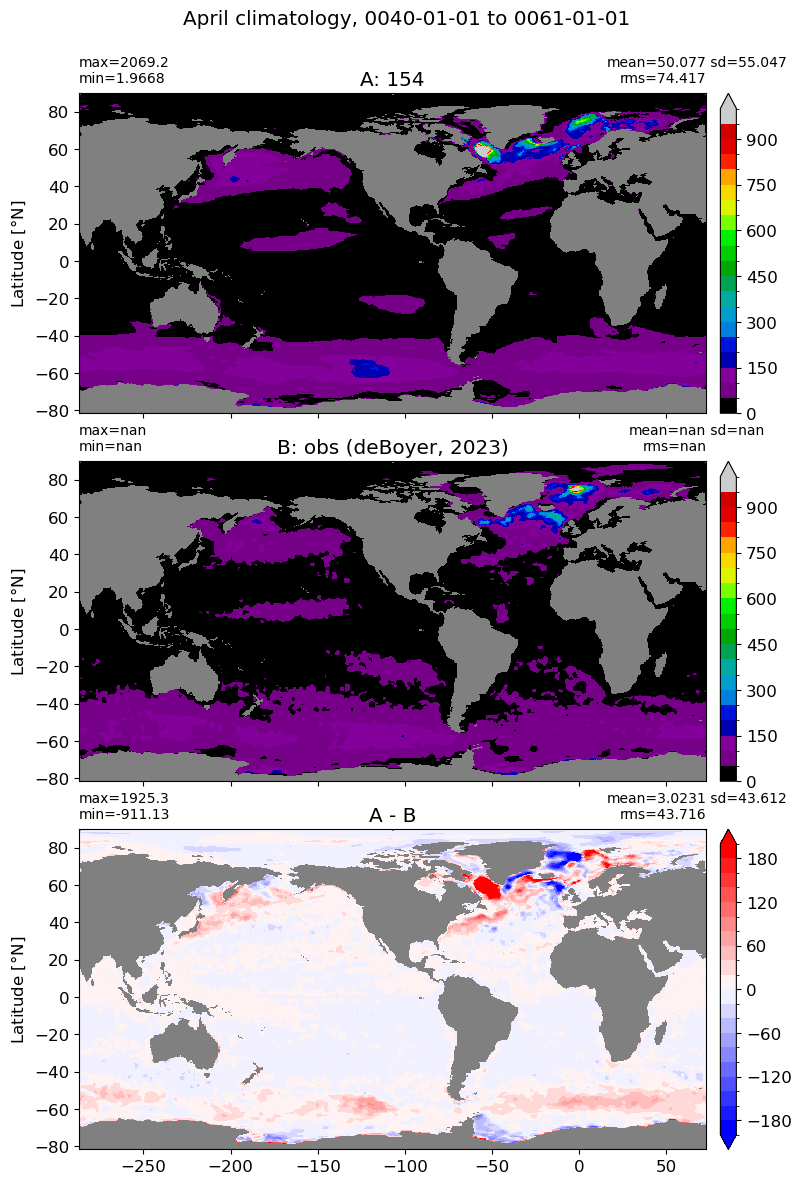

April

plot_mld_month(m=3)

May

plot_mld_month(m=4)

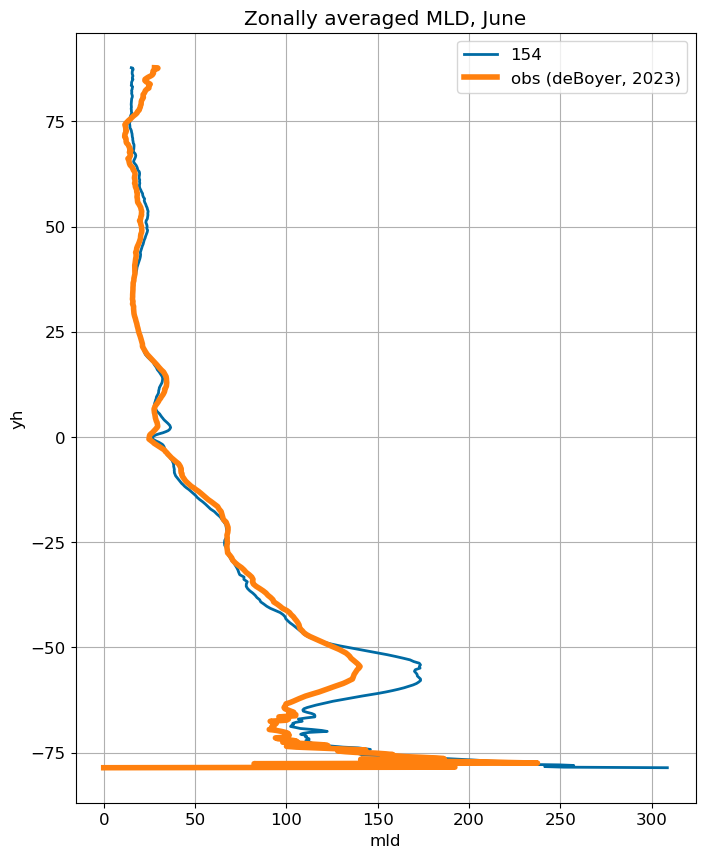

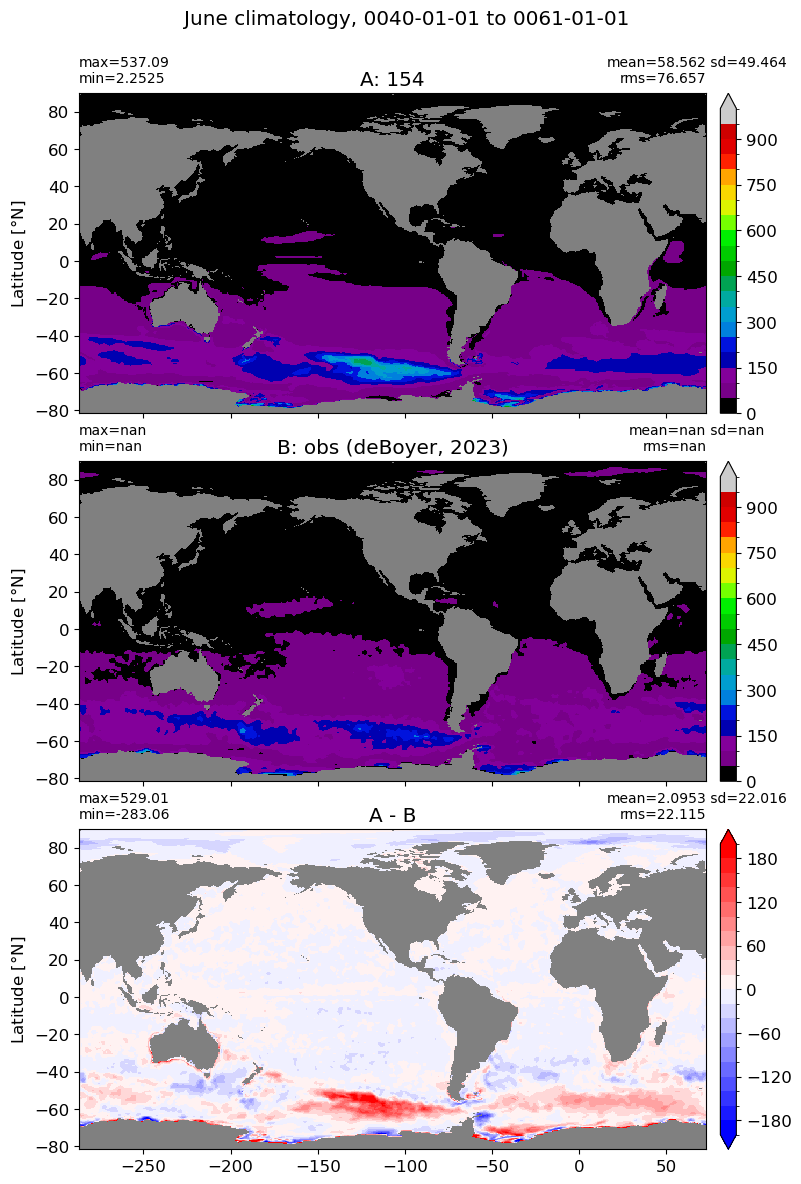

June

plot_mld_month(m=5)

July

plot_mld_month(m=6)

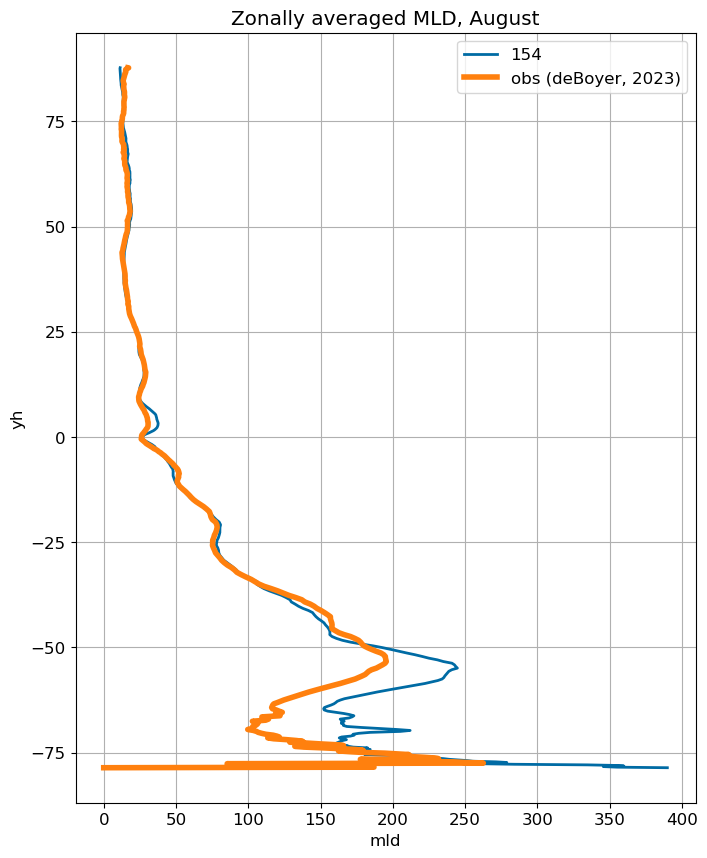

August

plot_mld_month(m=7)

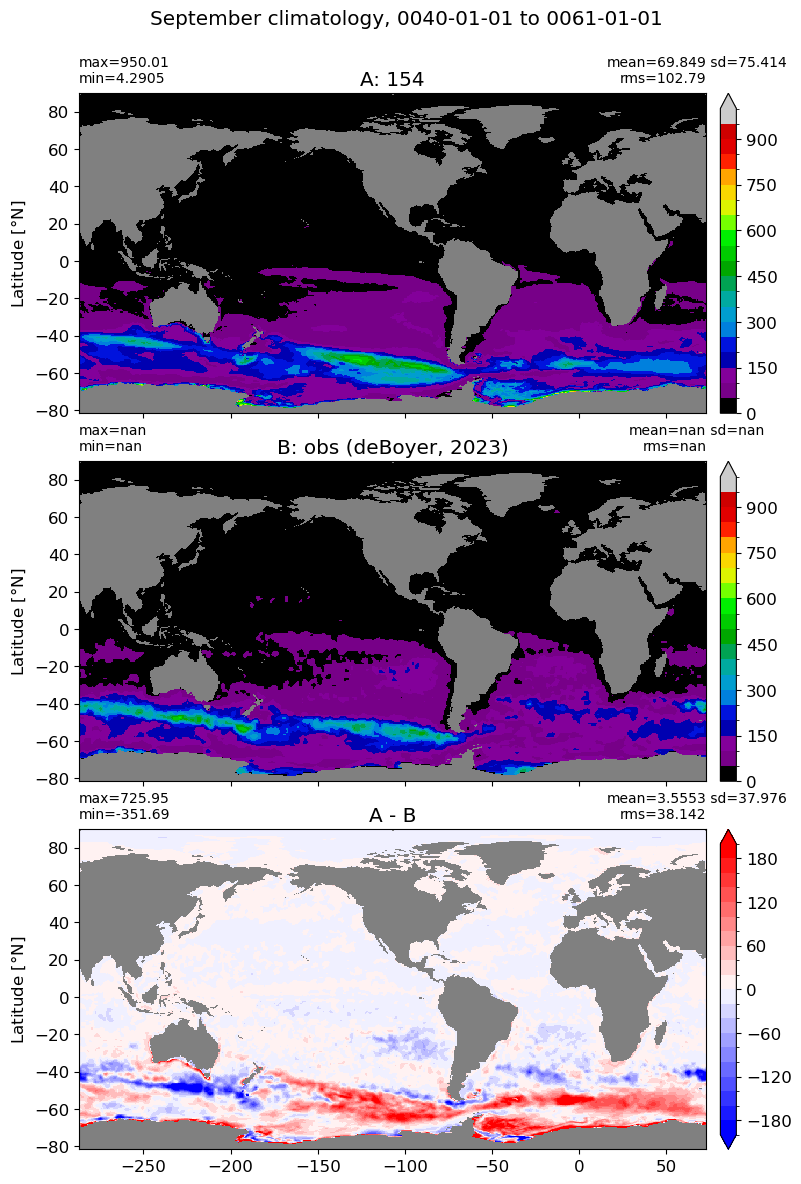

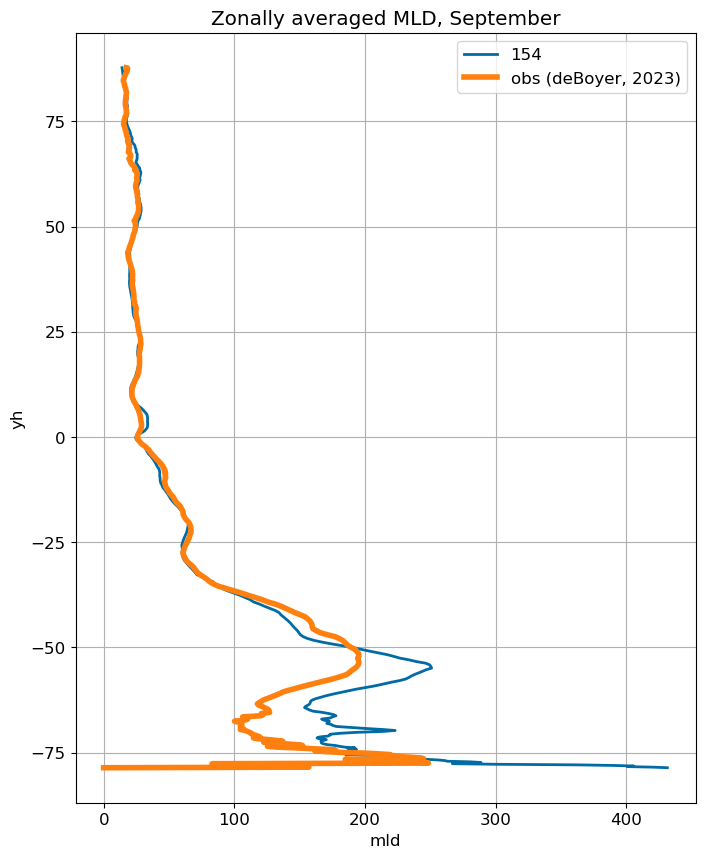

September

plot_mld_month(m=8)

October

plot_mld_month(m=9)

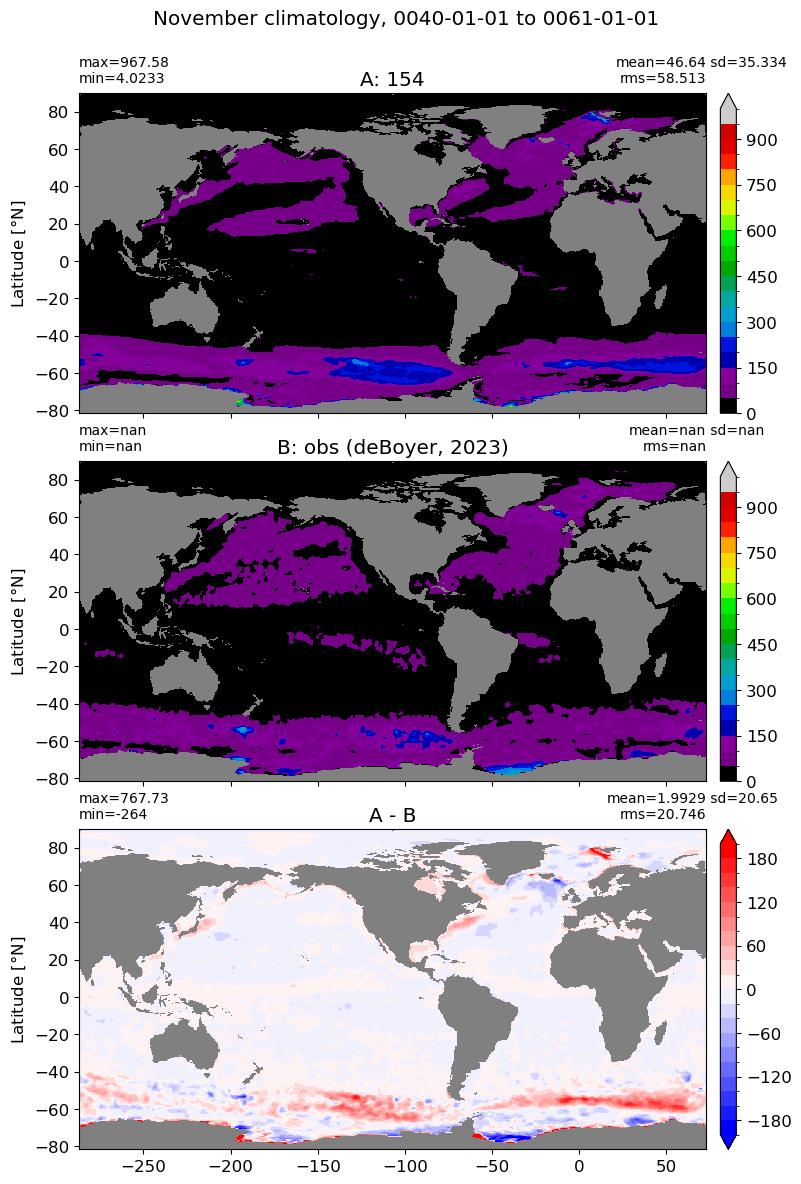

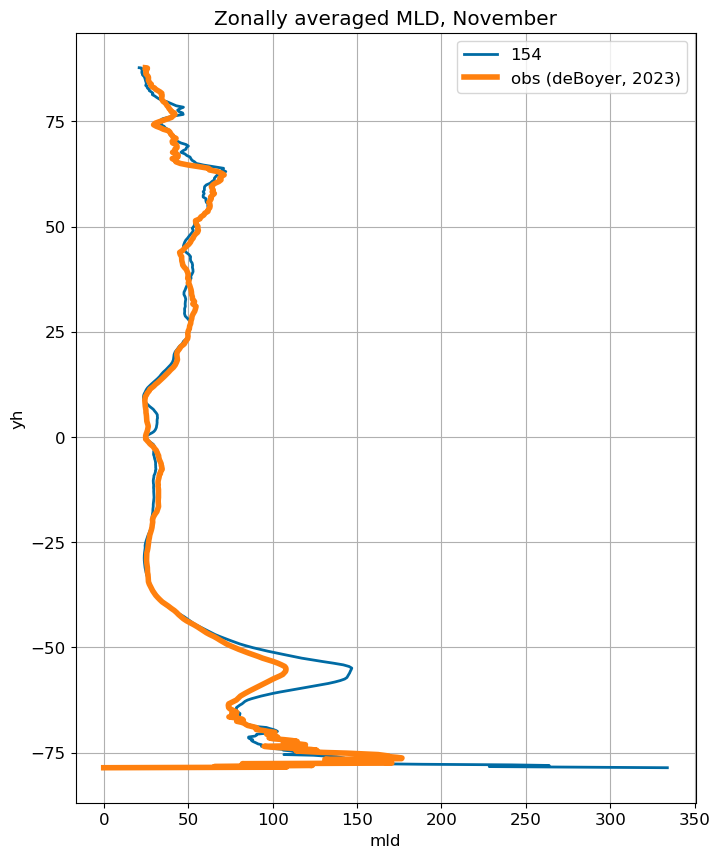

November

plot_mld_month(m=10)

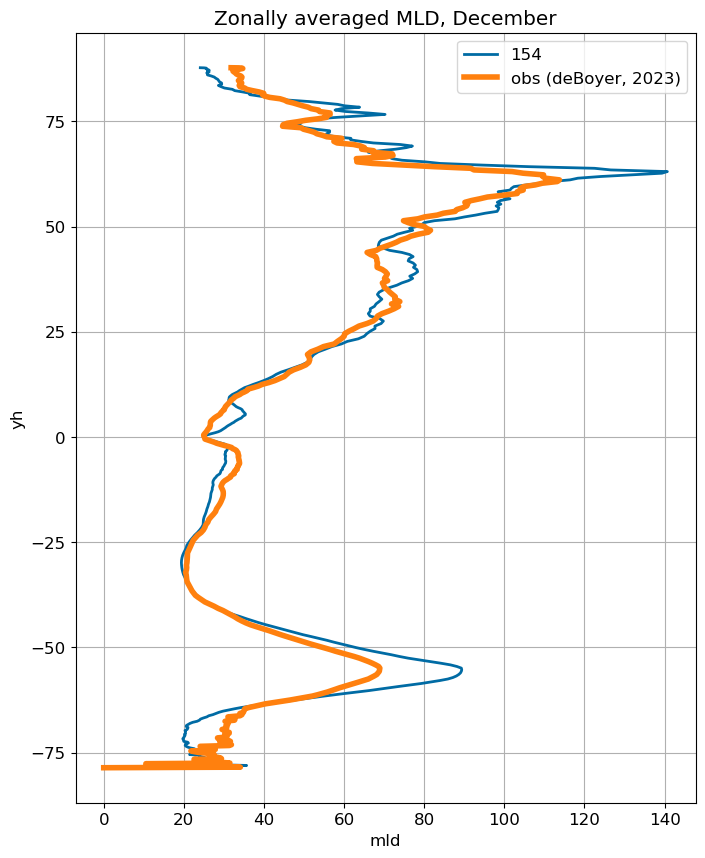

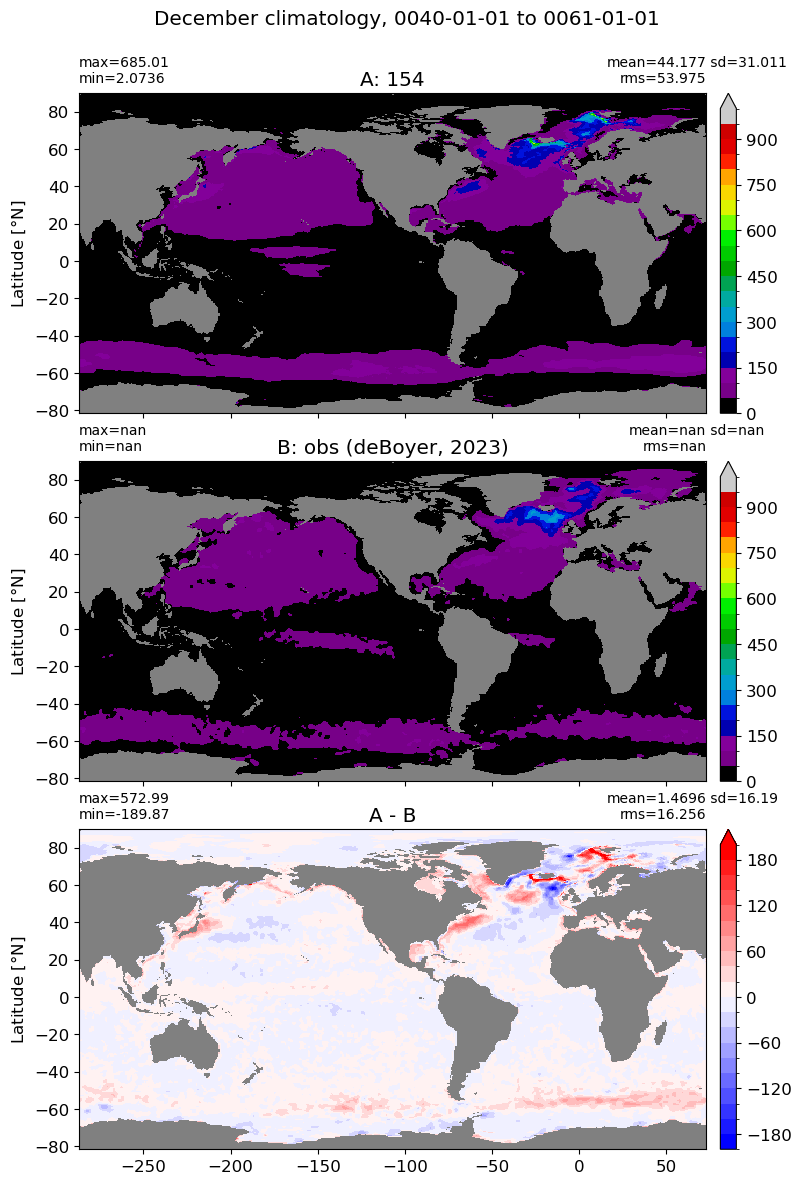

December

plot_mld_month(m=11)

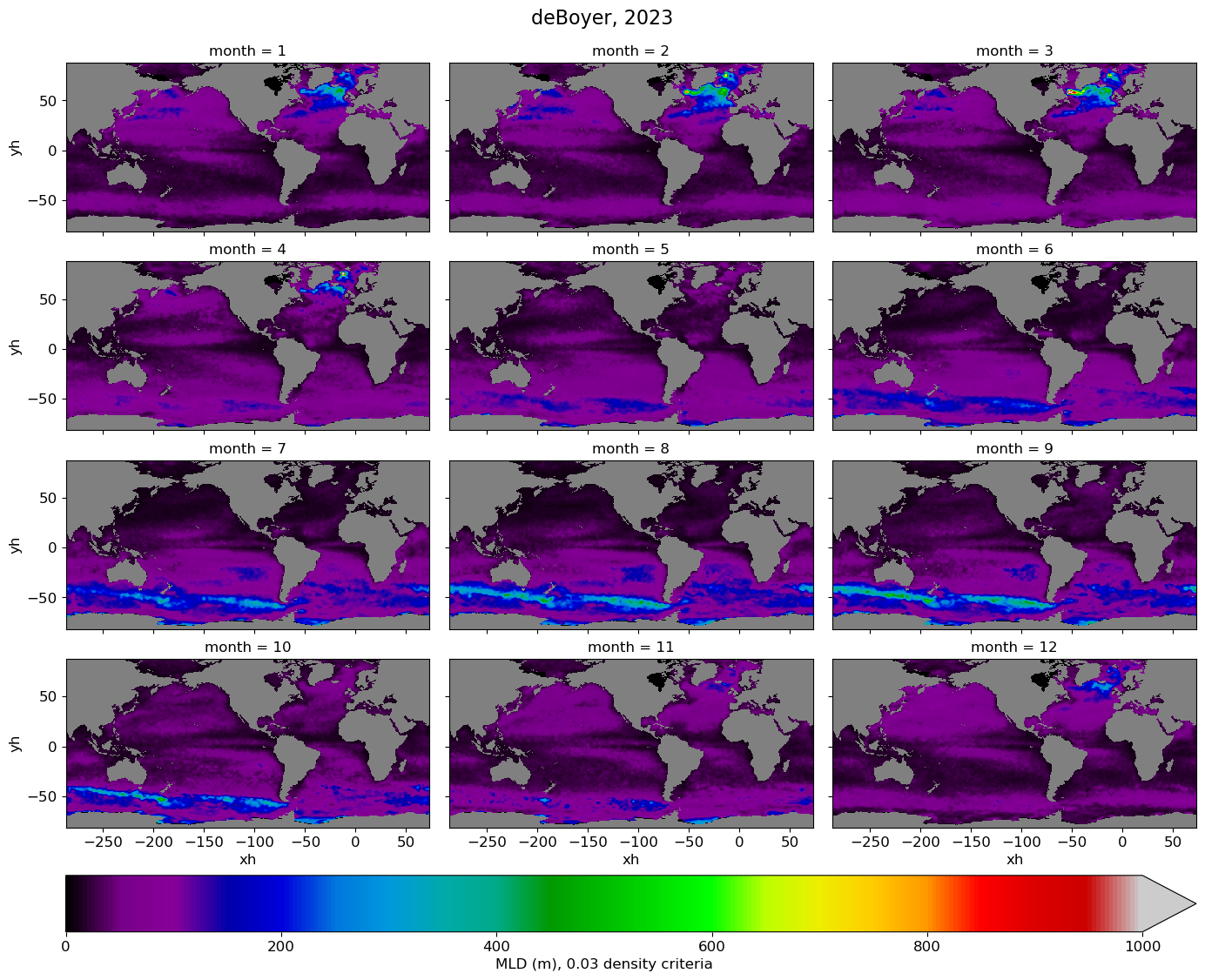

All months, obs

cmap = plt.cm.nipy_spectral.copy()
cmap.set_bad(color='gray')

g = mld_obs.mld.plot(x="xh", y="yh", col='month',
            col_wrap=3,
            robust=True,
            figsize=(14,12),
            cmap=cmap,
            vmin=0., vmax=1000.,
            cbar_kwargs={"orientation": "horizontal", "pad": 0.05, "label": 'MLD (m), 0.03 density criteria'},
           )
# Add a suptitle
g.fig.suptitle('deBoyer, 2023', fontsize=16, y=1.02);

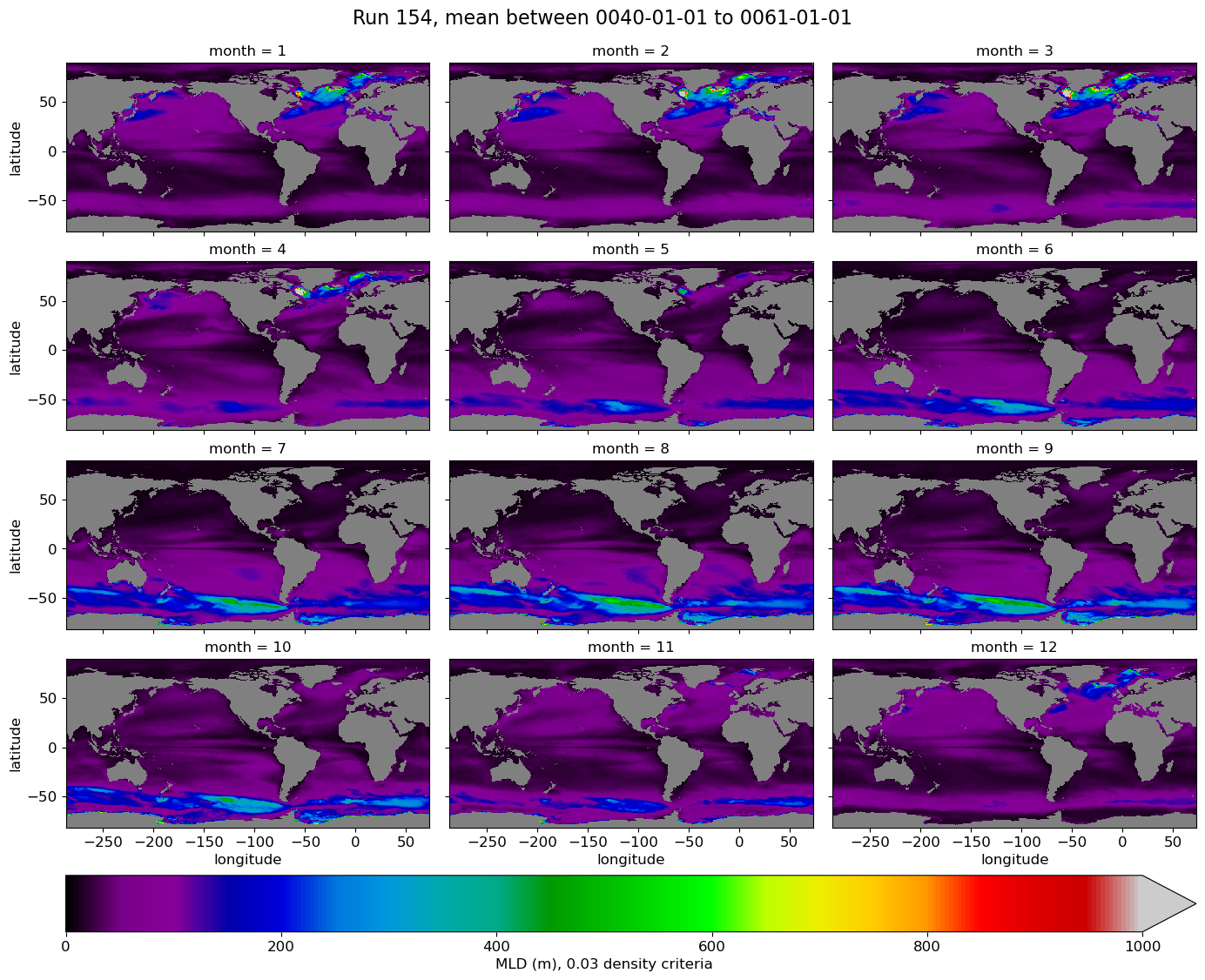

All months, model

for path, case, i in zip(ocn_path, casename, range(len(casename))):
  ds =  xr.open_dataset(path+case+'_MLD_monthly_clima.nc')
  g = ds.mlotst.plot(x="longitude", y="latitude", col='month',
                col_wrap=3,
                robust=True,
                figsize=(14,12),
                cmap=cmap,
                vmin=0., vmax=1000.,
                cbar_kwargs={"orientation": "horizontal", "pad": 0.05, "label": 'MLD (m), 0.03 density criteria'},
               )
  # Add a suptitle
  g.fig.suptitle('Run {}, mean between {} to {}'.format(label[i], start_date, end_date), fontsize=16, y=1.02);

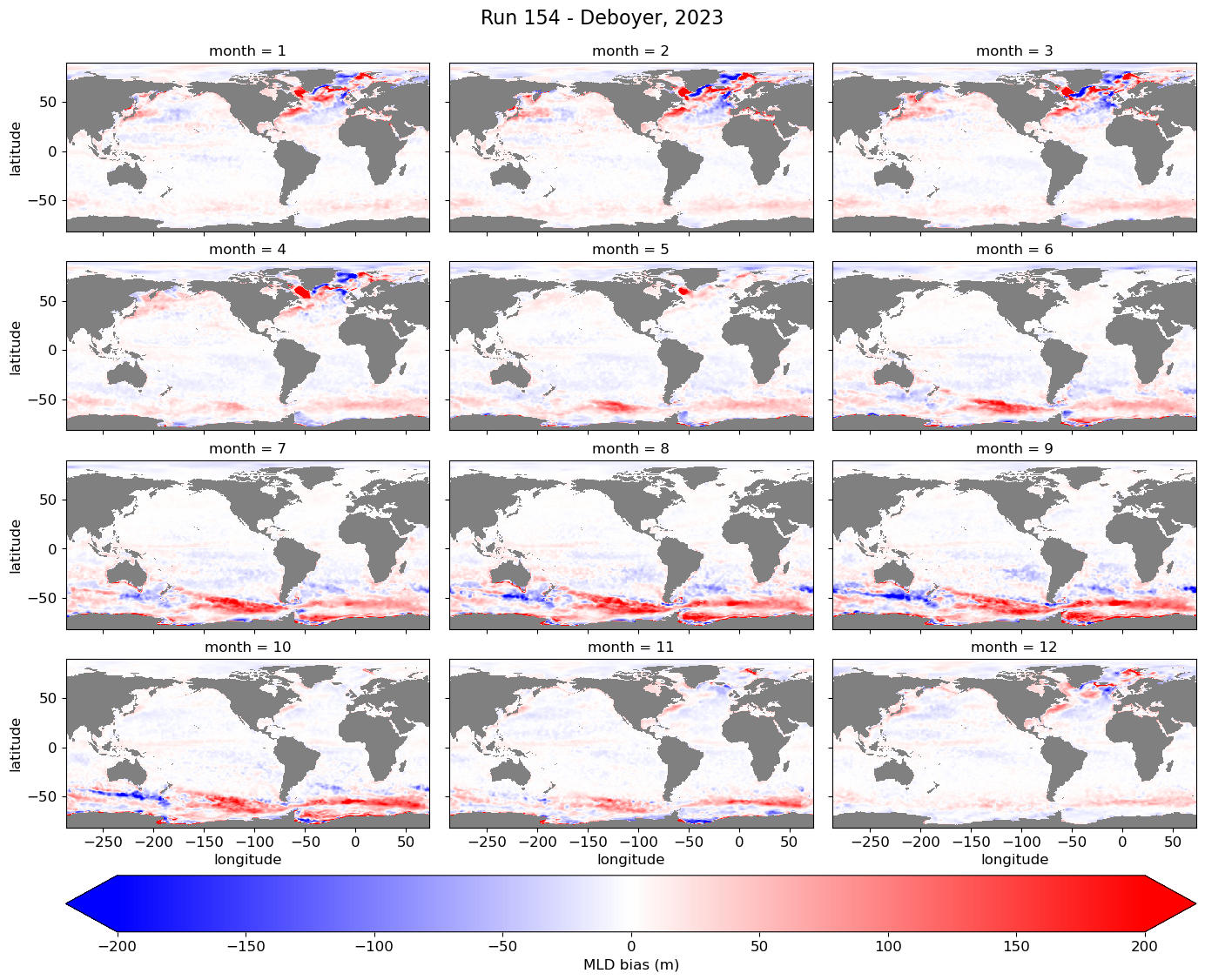

All months, model - obs

cmap = plt.cm.bwr.copy()
cmap.set_bad(color='gray')

for path, case, i in zip(ocn_path, casename, range(len(casename))):
  ds =  xr.open_dataset(path+case+'_MLD_monthly_clima.nc')
  diff = ds.mlotst - mld_obs.mld
  g = diff.plot(x="longitude", y="latitude", col='month',
                col_wrap=3,
                robust=True,
                figsize=(14,12),
                cmap=cmap,
                vmin=-200, vmax=200.,
                cbar_kwargs={"orientation": "horizontal", "pad": 0.05, "label": 'MLD bias (m)'},
               )
  # Add a suptitle
  g.fig.suptitle('Run {} - Deboyer, 2023'.format(label[i]), fontsize=16, y=1.02);

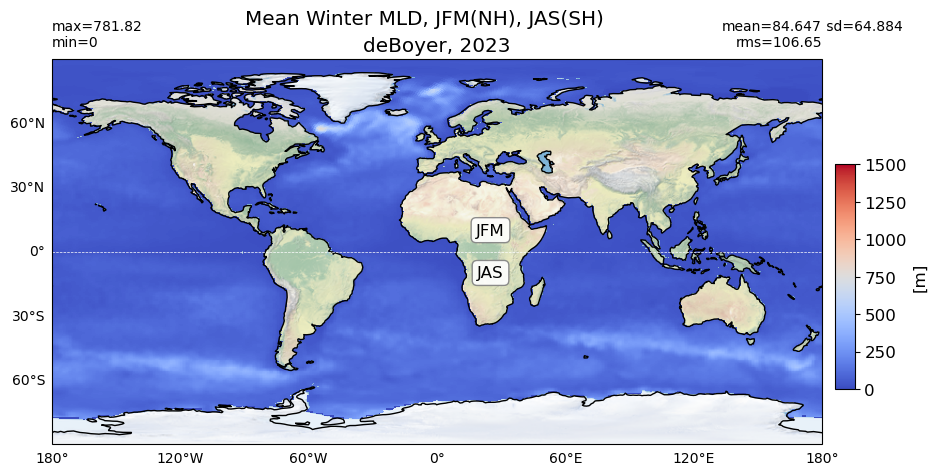

Winter

%matplotlib inline

title = 'Mean Winter MLD, JFM(NH), JAS(SH)'
try:
  area= grd[0].area_t
except:
  area= grd[0].areacello
plot_map(obs_winter, area, grd[0], 'deBoyer, 2023',
           vmin=0, vmax=1500, suptitle=title)

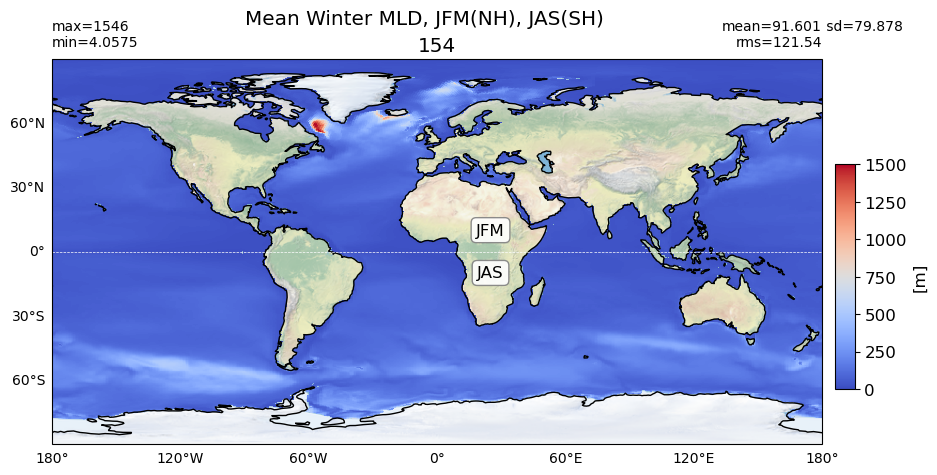

title1 = 'Mean Winter MLD, JFM(NH), JAS(SH)'

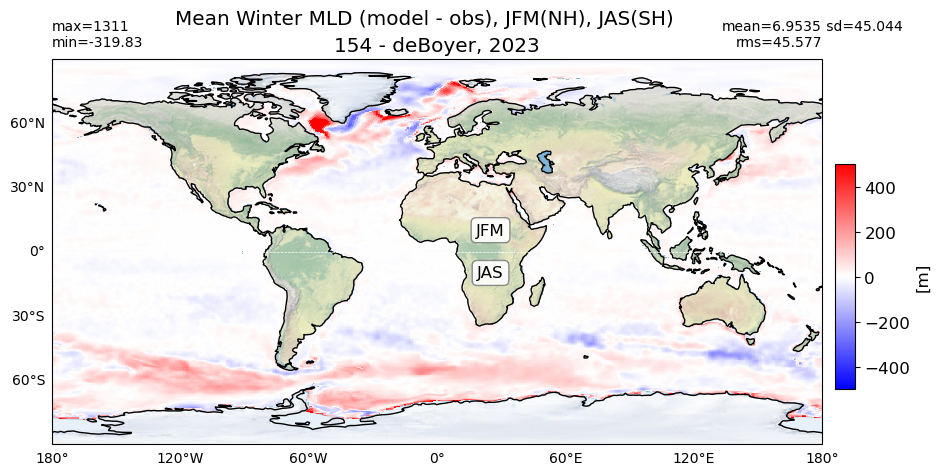

title2 = 'Mean Winter MLD (model - obs), JFM(NH), JAS(SH)'

for path, case, i in zip(ocn_path, casename, range(len(casename))):
  da = xr.open_dataset(path+case+'_MLD_winter.nc')
  try:
    area= grd[i].area_t
  except:
    area= grd[i].areacello

  # model
  plot_map(da.MLD_winter.values, area, grd[i], label[i],
           vmin=0, vmax=1500, suptitle=title1)
  # model - obs
  diff = (da.MLD_winter.values - obs_winter)
  plot_map(diff, area, grd[i], label[i] + ' - deBoyer, 2023',
           vmin=-500, vmax=500, suptitle=title2, cmap='bwr')

fig, ax = plt.subplots(figsize=(8,10))
for path, case, i in zip(ocn_path, casename, range(len(casename))):
    da = xr.open_dataset(path+case+'_MLD_winter.nc')
    da.MLD_winter.weighted(grd_xr[i].areacello.fillna(0)).mean('xh').plot(y="yh",
                                        ax=ax, label=label[i], lw=2)

obs_winter_da = xr.DataArray(
    data=obs_winter,  # New data (all zeros)
    coords=da.coords,
    dims=da.dims
)

obs_winter_da.weighted(grd_xr[0].areacello.fillna(0)).mean('xh').plot(y="yh",
                                        ax=ax, label='obs (deBoyer, 2023)', lw=3)
ax.set_title('Zonally averaged MLD, Winter JFM(NH), JAS(SH)')
ax.grid()
ax.legend();

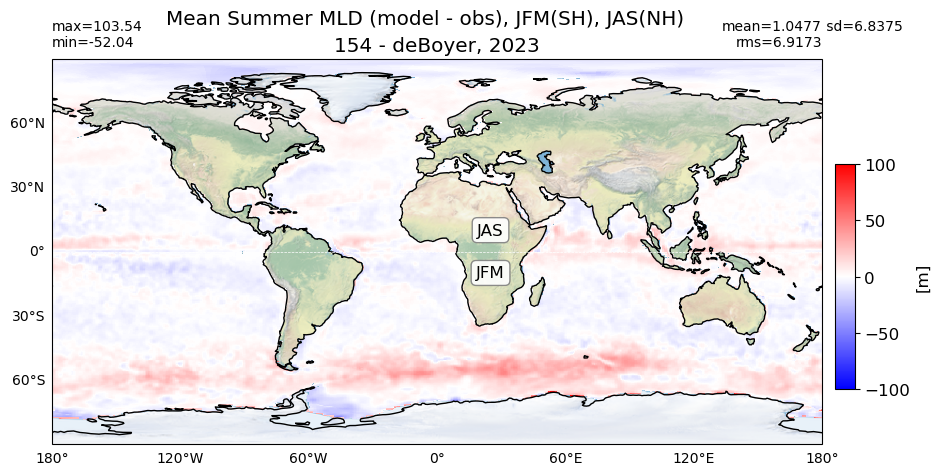

Summer

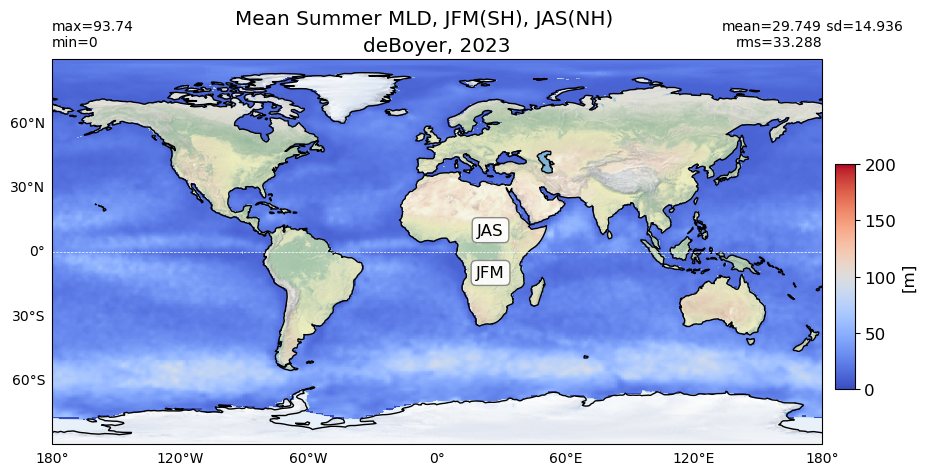

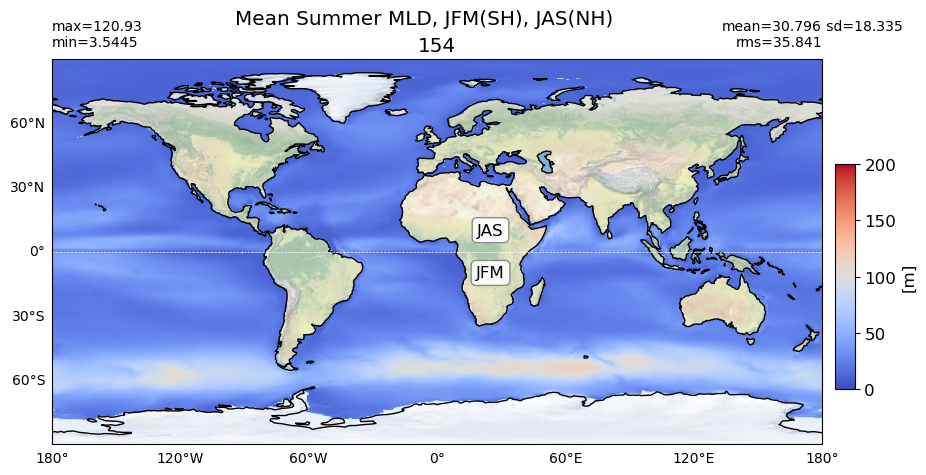

title = 'Mean Summer MLD, JFM(SH), JAS(NH)'
try:
  area= grd[0].area_t
except:
  area= grd[0].areacello
plot_map(obs_summer, area, grd[0], 'deBoyer, 2023', vmin=0, vmax=200,
           suptitle=title, nh='JAS', sh='JFM',)

title1 = 'Mean Summer MLD, JFM(SH), JAS(NH)'
title2 = 'Mean Summer MLD (model - obs), JFM(SH), JAS(NH)'

for path, case, i in zip(ocn_path, casename, range(len(casename))):
  da = xr.open_dataset(path+case+'_MLD_summer.nc')
  try:
    area= grd[i].area_t
  except:
    area= grd[i].areacello

  # model
  plot_map(da.MLD_summer.values, area, grd[i], label[i],
           vmin=0, vmax=200, suptitle=title1, nh='JAS', sh='JFM')
  # model - obs
  diff = (da.MLD_summer.values - obs_summer)
  plot_map(diff, area, grd[i], label[i] + ' - deBoyer, 2023',
           vmin=-100, vmax=100, suptitle=title2, nh='JAS',
           sh='JFM',cmap='bwr')

fig, ax = plt.subplots(figsize=(8,10))
for path, case, i in zip(ocn_path, casename, range(len(casename))):
    da = xr.open_dataset(path+case+'_MLD_summer.nc')
    da.MLD_summer.weighted(grd_xr[i].areacello.fillna(0)).mean('xh').plot(y="yh",
                                        ax=ax, label=label[i], lw=2)

obs_summer_da = xr.DataArray(
    data=obs_summer,  # New data (all zeros)
    coords=da.coords,
    dims=da.dims
)

obs_summer_da.weighted(grd_xr[0].areacello.fillna(0)).mean('xh').plot(y="yh",
                                        ax=ax, label='obs (deBoyer, 2023)', lw=3)

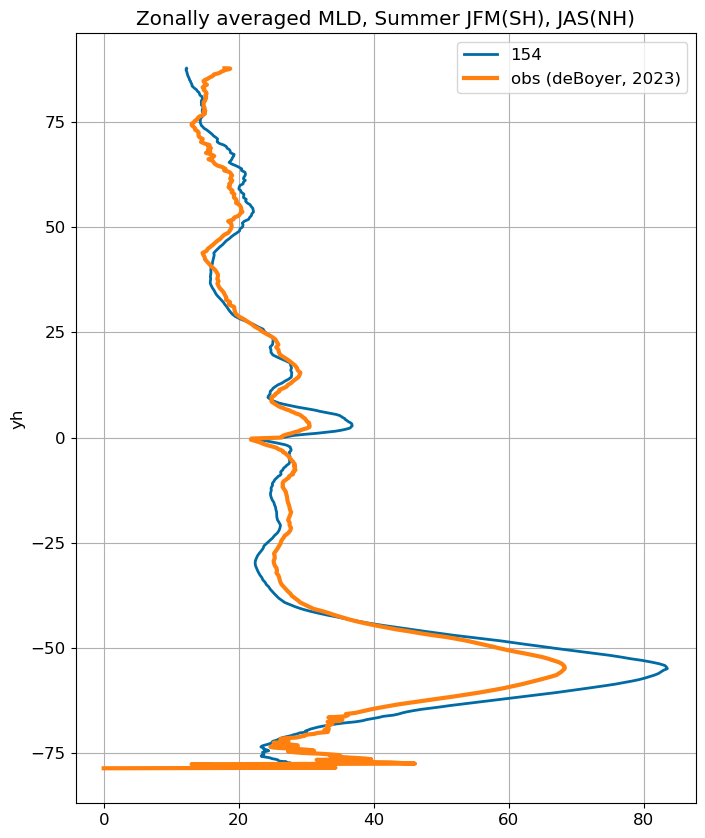

ax.set_title('Zonally averaged MLD, Summer JFM(SH), JAS(NH)')
ax.grid()
ax.legend();
