# Parameters
variable = "mass_wt"
long_name = "The column mass for calculating mass-weighted average properties"

mass_wt

from IPython.display import display, Markdown

# Dynamically generate markdown content
markdown_text = f" This notebook compares area-weighted mean and, in some cases, integral time series for {variable} in different basins."

# Display the updated markdown content
display(Markdown(markdown_text))

This notebook compares area-weighted mean and, in some cases, integral time series for mass_wt in different basins.

%load_ext autoreload
%autoreload 2

%%capture
# comment above line to see details about the run(s) displayed
import sys, os
sys.path.append(os.path.abspath(".."))
from misc import *
import glob
print("Last update:", date.today())
%matplotlib inline

# figure size
fs = (10,4)

# load data
ds = []
for c, p in zip(casename, ocn_path):
  file = glob.glob(p+'{}.native.{}.??????-??????.nc'.format(c, variable))[0]
  ds.append(xr.open_dataset(file))

def ts_plot(variable, ds, fs, label, reg='Global'):
    """
    Plot time series of regional means and integrals for a given variable from a list of datasets.

    Parameters
    ----------
    variable : str
        Name of the variable to plot (prefix for "_mean" and "_int" variables in dataset).
    ds : list of xarray.Dataset
        List of datasets, each containing time series data for the specified variable with
        variables named as `<variable>_mean` and optionally `<variable>_int`, and with
        attributes 'long_name', 'units_mean', and optionally 'units_int'.
    fs : tuple
        Figure size (width, height) in inches for the plots.
    label : list of str
        List of labels corresponding to each dataset, used for the legend.
    reg : str, optional
        Name of the region to select for plotting (default is 'Global').

    Returns
    -------
    None
        Displays the plots but does not return any value.

    Notes
    -----
    - This function creates one or two plots:
        1. A time series of the variable's regional mean (`<variable>_mean`).
        2. If available, a time series of the variable's regional integral (`<variable>_int`).
    - The function expects each dataset to have attributes 'long_name', 'units_mean', and optionally 'units_int'.
    - The same region name is applied across all datasets.
    """

    fig, ax = plt.subplots(nrows=1, ncols=1, figsize=fs)
    for l, i in zip(label, range(len(label))):
        ds[i][variable+"_mean"].sel(region=reg).plot(ax=ax, label=l, lw=3, linestyle=linestyle[i], color=color[i])

    long_name = ds[0].attrs['long_name']
    ax.set_title("{}, {}".format(reg, long_name))
    ax.set_ylabel(variable+"_mean, " + ds[i].attrs['units_mean'])
    ax.set_xlabel('Year')
    ax.grid()
    ax.legend(ncol=3, loc=1)

    if variable+"_int" in ds[0]:
        fig, ax = plt.subplots(nrows=1, ncols=1, figsize=fs)
        for l, i in zip(label, range(len(label))):
            ds[i][variable+"_int"].sel(region=reg).plot(ax=ax, label=l, lw=3, linestyle=linestyle[i], color=color[i])

        ax.set_title("{}, {}".format(reg, long_name))
        ax.set_ylabel(variable+"_int, " + ds[i].attrs['units_int'])
        ax.set_xlabel('Year')
        ax.grid()
        ax.legend(ncol=3, loc=1)

    return

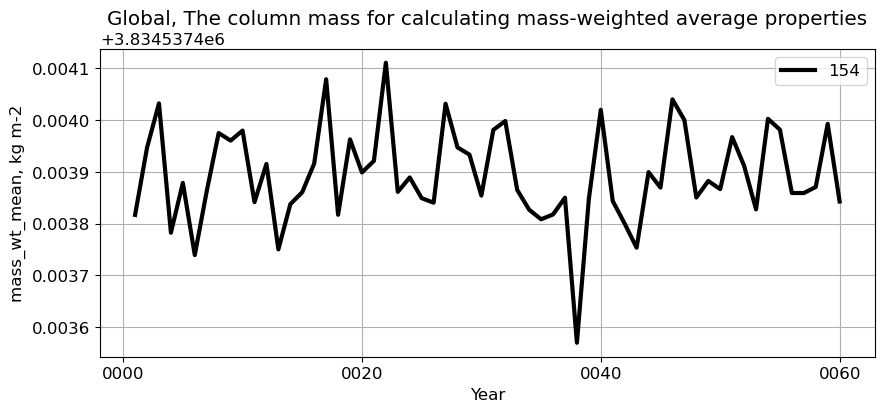

Global

reg = 'Global'
ts_plot(variable, ds, fs, label, reg = reg)

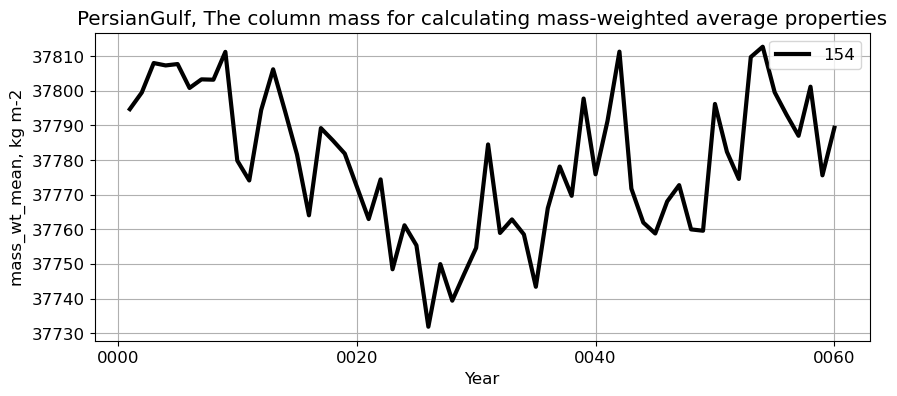

PersianGulf

reg = 'PersianGulf'
ts_plot(variable, ds, fs, label, reg = reg)

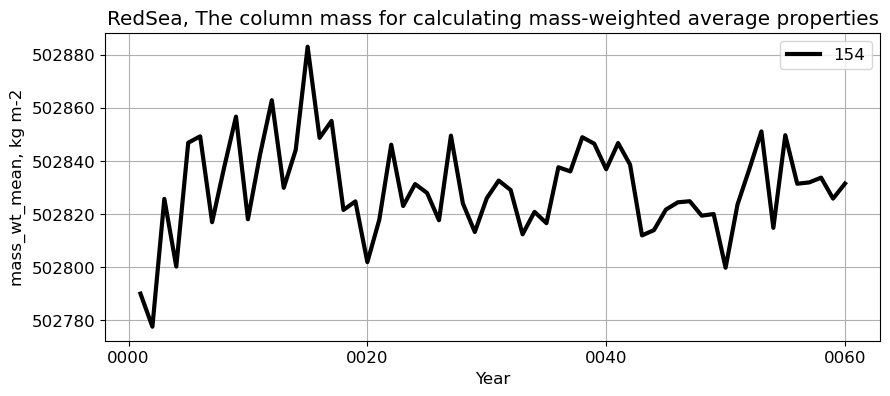

RedSea

reg = 'RedSea'
ts_plot(variable, ds, fs, label, reg = reg)

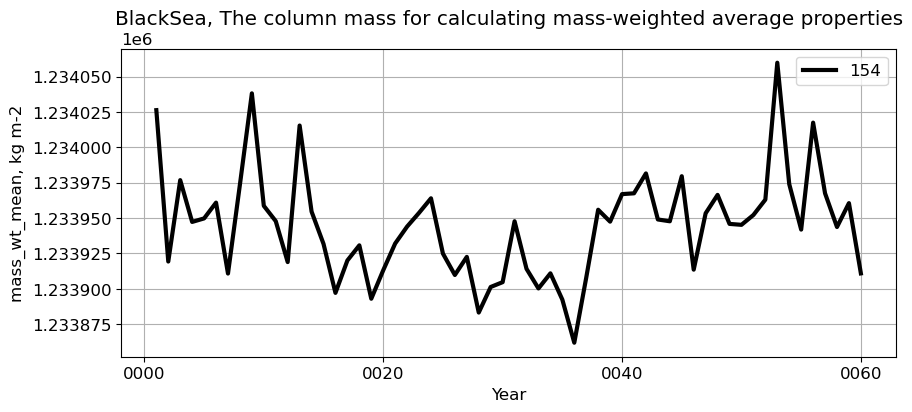

BlackSea

reg = 'BlackSea'
ts_plot(variable, ds, fs, label, reg = reg)

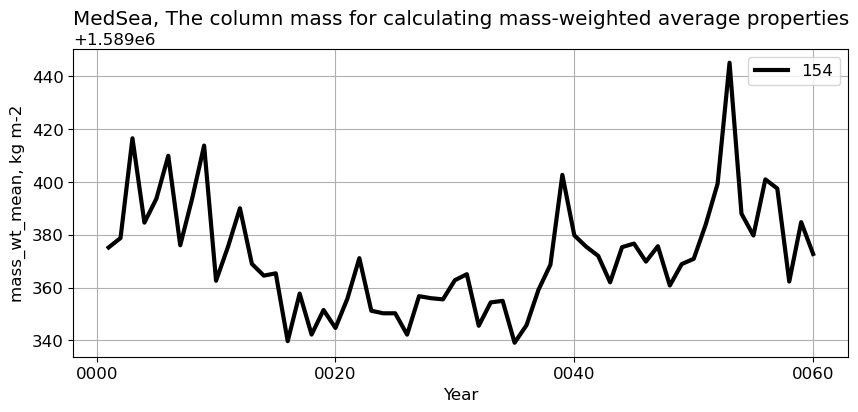

MedSea

reg = 'MedSea'
ts_plot(variable, ds, fs, label, reg = reg)

The history saving thread hit an unexpected error (OperationalError('database is locked')).History will not be written to the database.

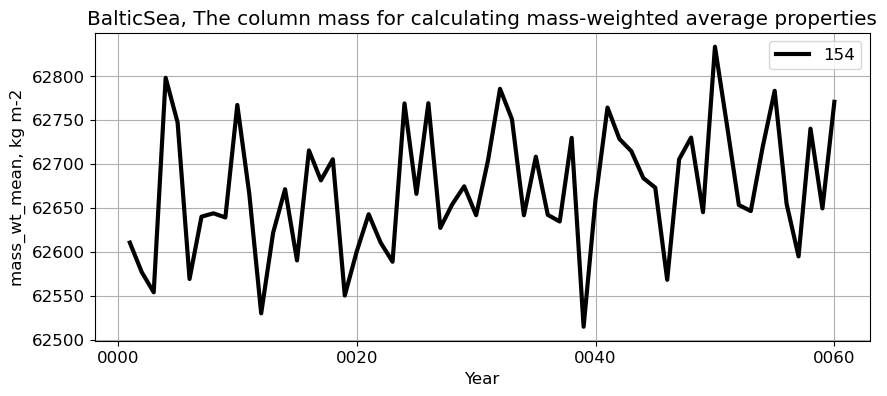

BalticSea

reg = 'BalticSea'
ts_plot(variable, ds, fs, label, reg = reg)

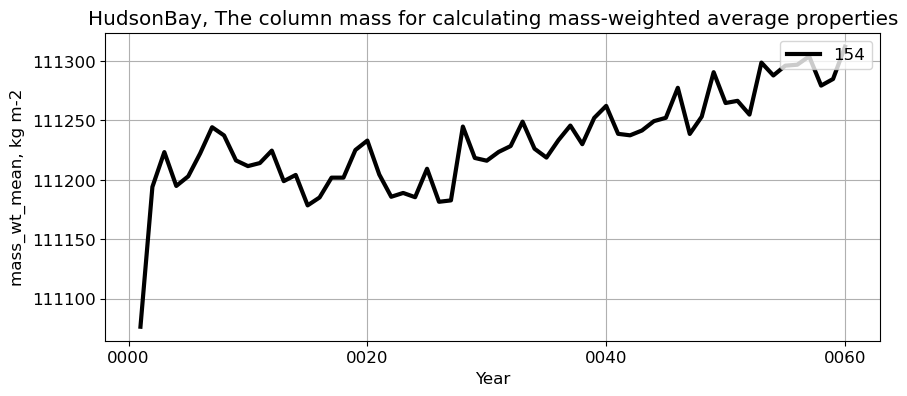

HudsonBay

reg = 'HudsonBay'
ts_plot(variable, ds, fs, label, reg = reg)

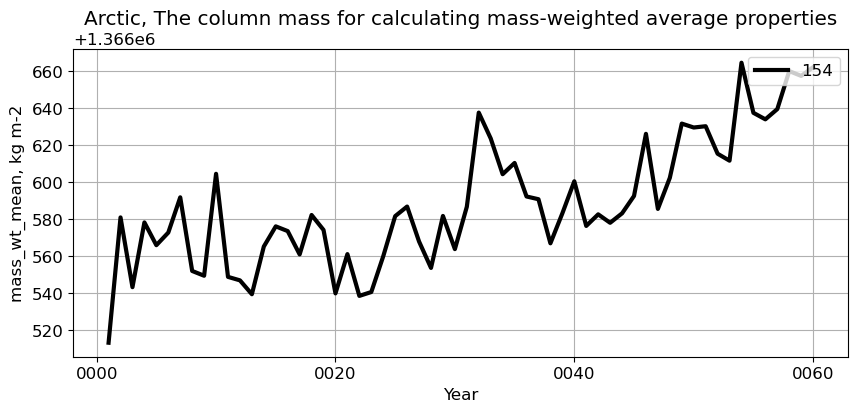

Arctic

reg = 'Arctic'
ts_plot(variable, ds, fs, label, reg = reg)

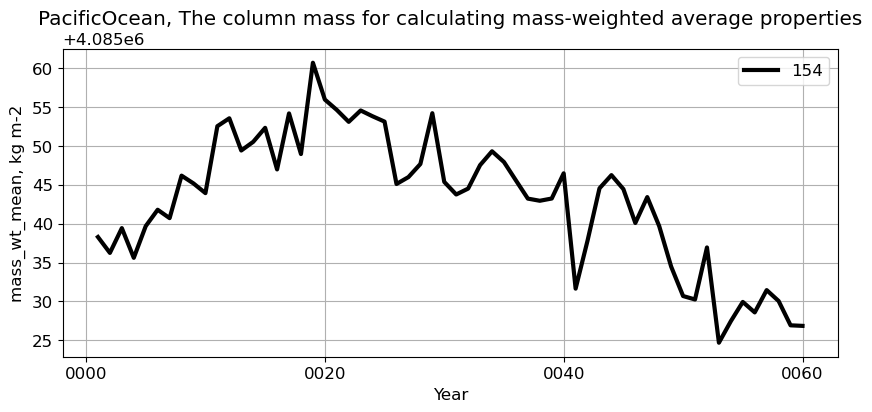

PacificOcean

reg = 'PacificOcean'
ts_plot(variable, ds, fs, label, reg = reg)

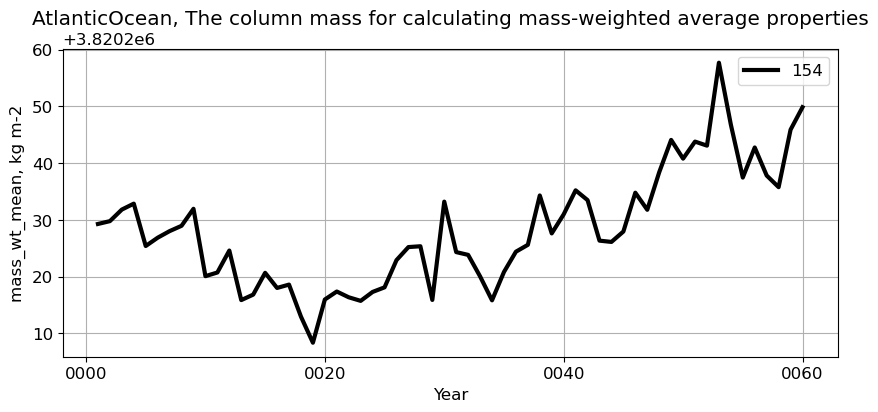

AtlanticOcean

reg = 'AtlanticOcean'
ts_plot(variable, ds, fs, label, reg = reg)

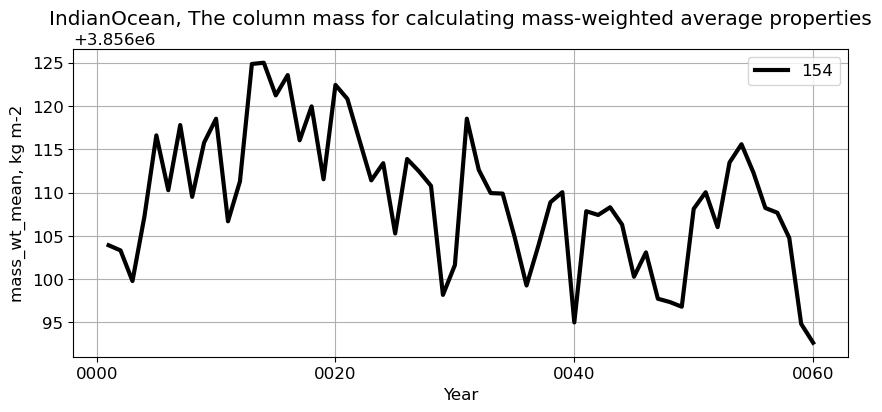

IndianOcean

reg = 'IndianOcean'
ts_plot(variable, ds, fs, label, reg = reg)

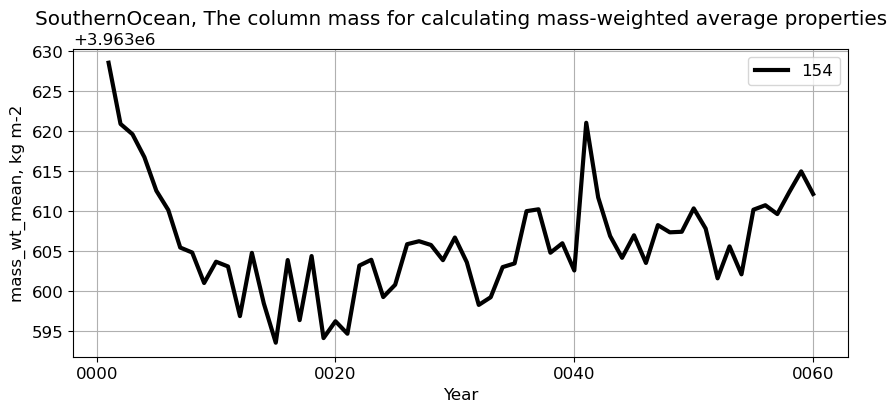

SouthernOcean

reg = 'SouthernOcean'
ts_plot(variable, ds, fs, label, reg = reg)

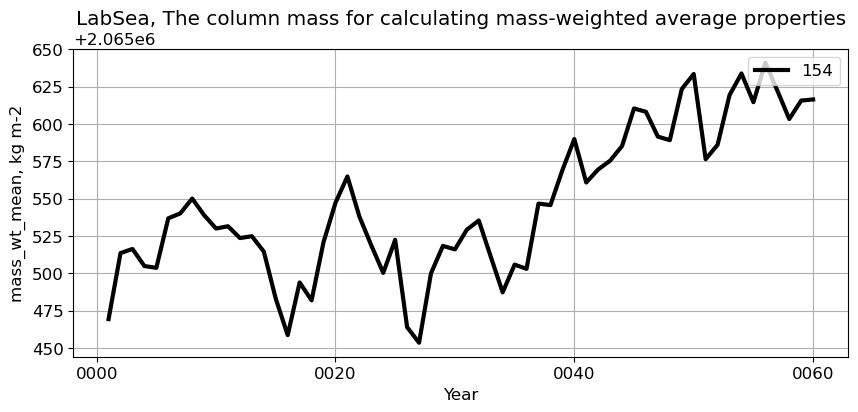

LabSea

reg = 'LabSea'
ts_plot(variable, ds, fs, label, reg = reg)

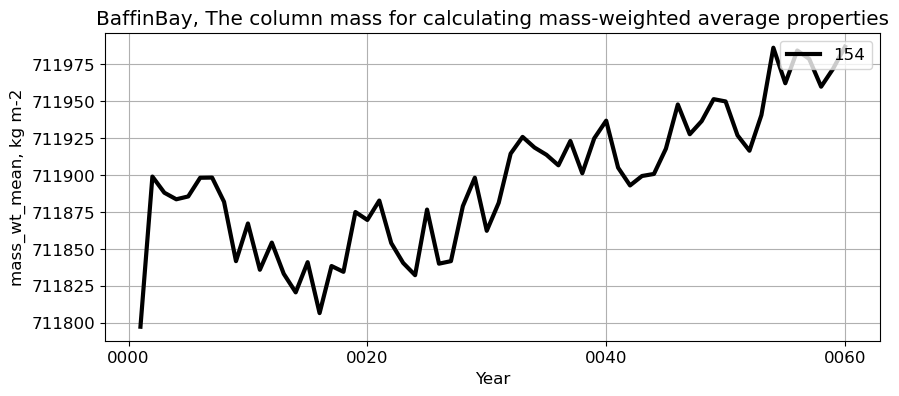

BaffinBay

reg = 'BaffinBay'
ts_plot(variable, ds, fs, label, reg = reg)

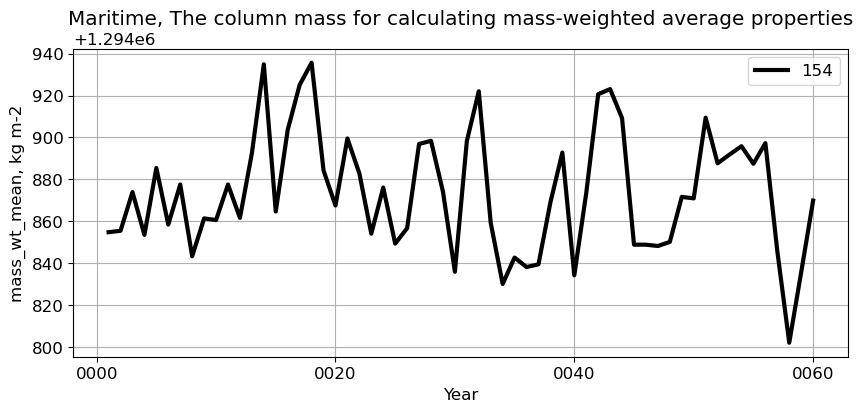

Maritime

reg = 'Maritime'
ts_plot(variable, ds, fs, label, reg = reg)

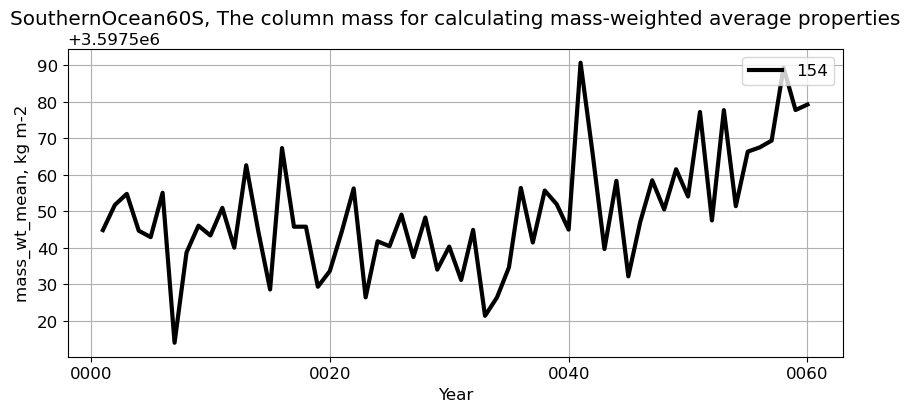

SouthernOcean60S

reg = 'SouthernOcean60S'
ts_plot(variable, ds, fs, label, reg = reg)

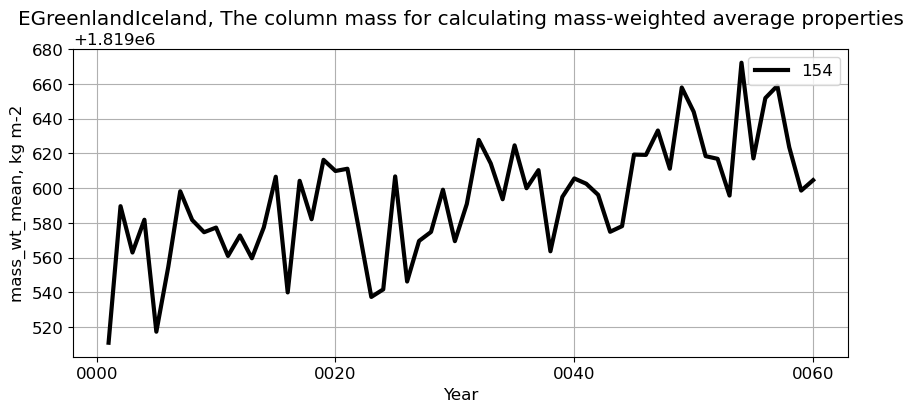

EGreenlandIceland

reg = 'EGreenlandIceland'
ts_plot(variable, ds, fs, label, reg = reg)

GulfOfMexico

reg = 'GulfOfMexico'
ts_plot(variable, ds, fs, label, reg = reg)
