Section transports

%load_ext autoreload
%autoreload 2

%%capture
# comment above line to see details about the run(s) displayed
from misc import *
import nc_time_axis
%matplotlib inline

transports = []
for path, case in zip(ocn_path, casename):
  ds = xr.open_dataset(path+case+'_section_transports.nc').sel(time=slice('0001-01-01',end_date))
  transports.append(ds)

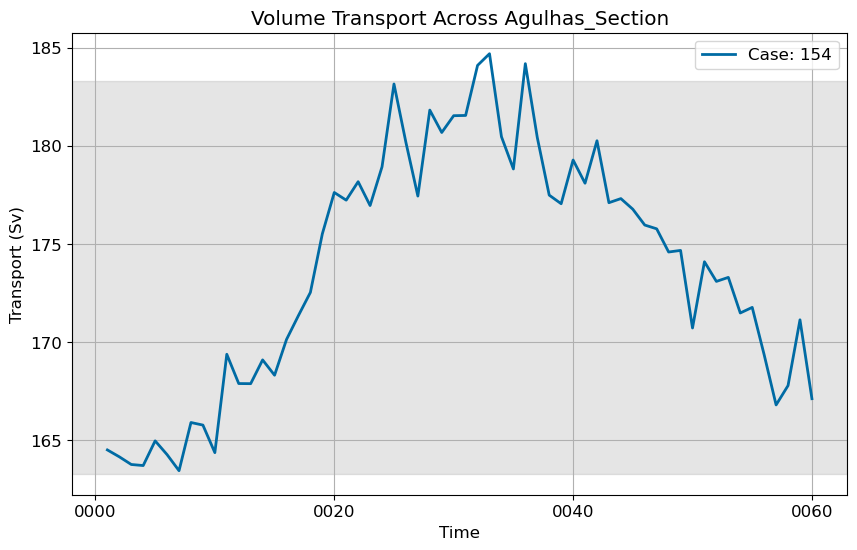

Agulhas

section_name = 'Agulhas_Section'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Barents Opening

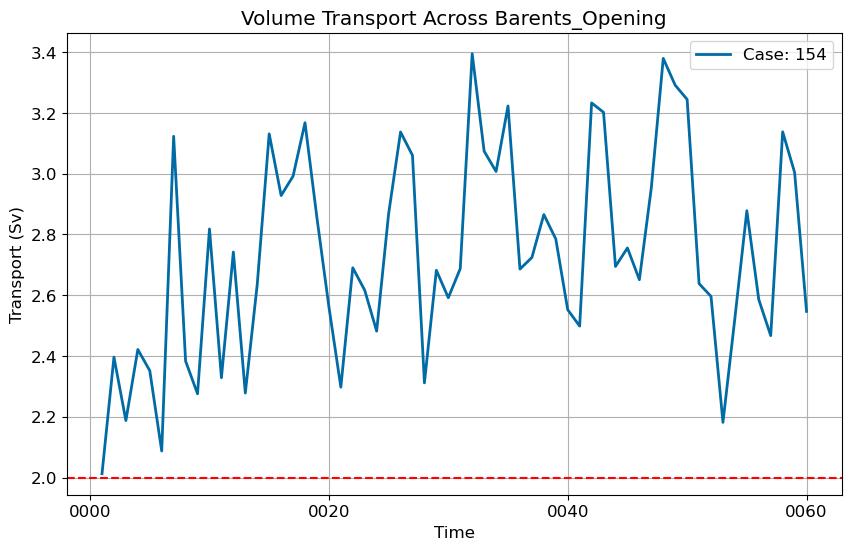

section_name = 'Barents_Opening'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Bering Strait

section_name = 'Bering_Strait'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Davis Strait

section_name = 'Davis_Strait'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Denmark Strait

section_name = 'Denmark_Strait'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Drake_Passage

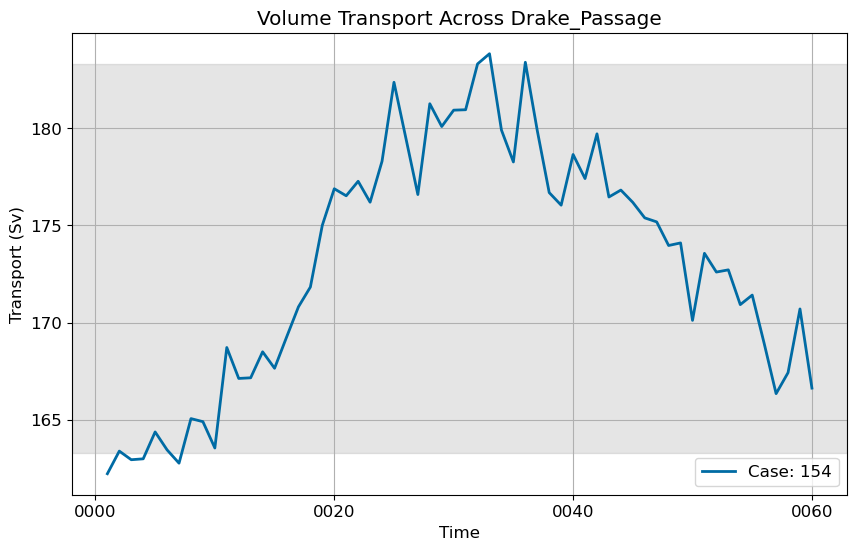

section_name = 'Drake_Passage'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

English Channel

section_name = 'English_Channel'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Fram Strait

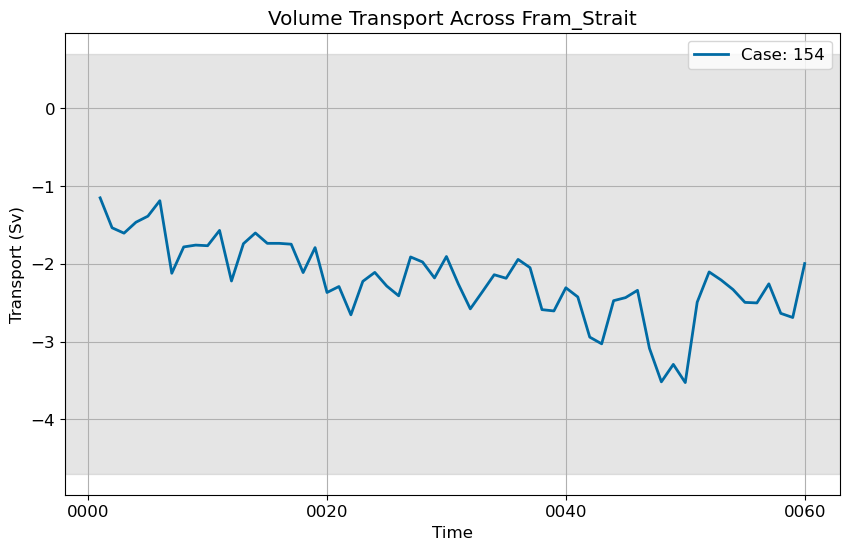

section_name = 'Fram_Strait'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

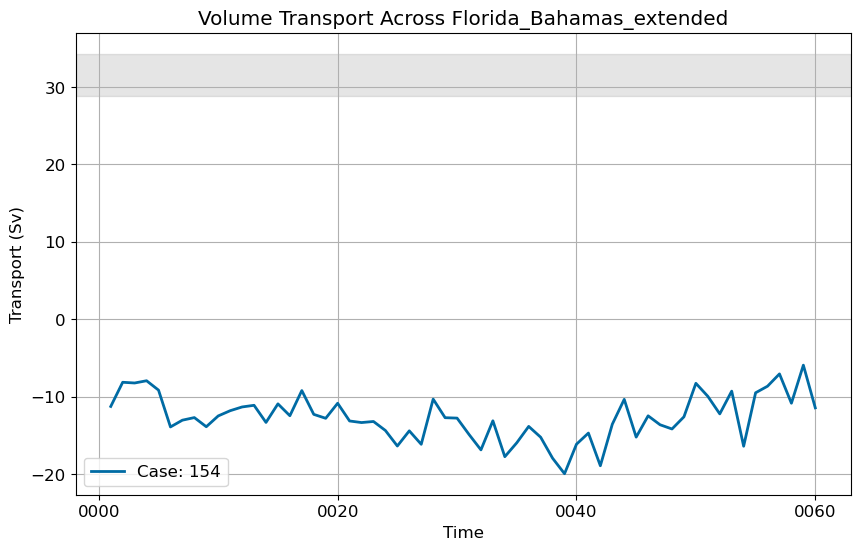

Florida Bahamas

section_name = 'Florida_Bahamas'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Florida Bahamas extended

section_name = 'Florida_Bahamas_extended'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Florida Cuba

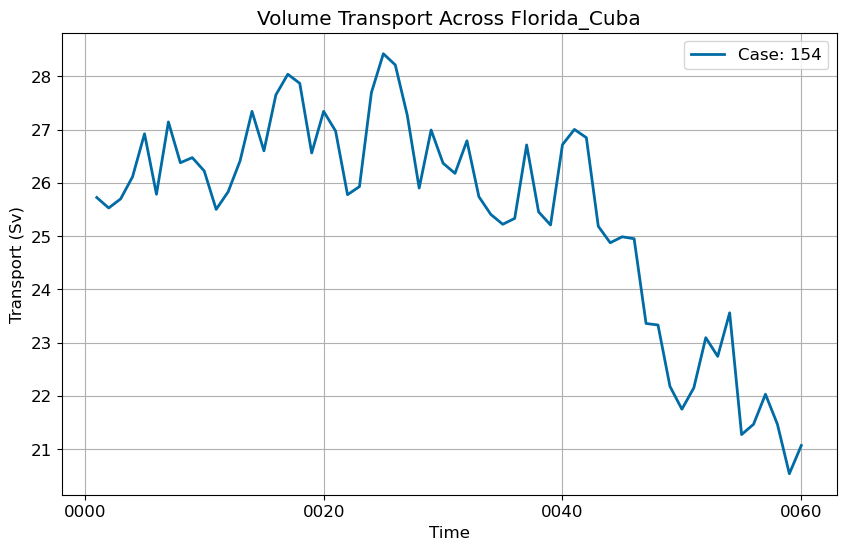

section_name = 'Florida_Cuba'
vals = None#get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

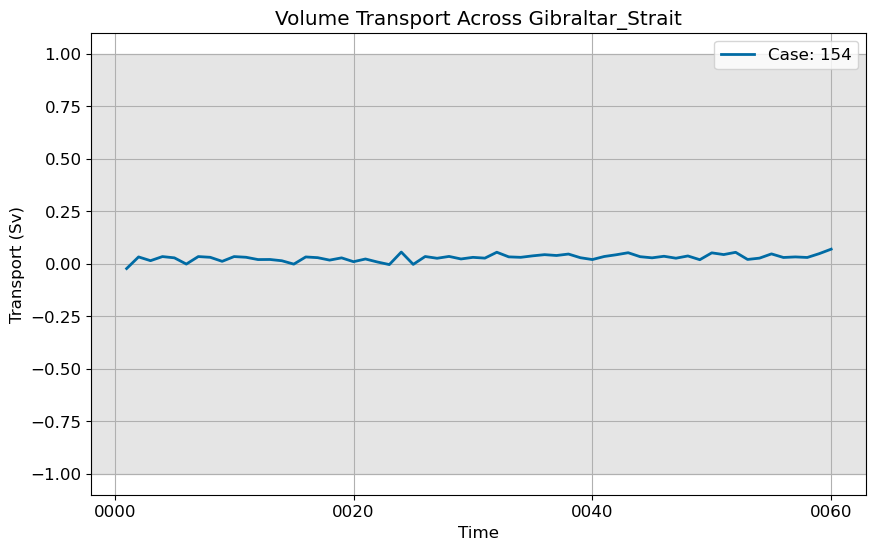

Gibraltar Strait

section_name = 'Gibraltar_Strait'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Iceland Norway

section_name = 'Iceland_Norway'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Section 'Iceland_Norway' not found in the '154' dataset. Skipping plot.

<Figure size 1000x600 with 0 Axes>

Indonesian Throughflow

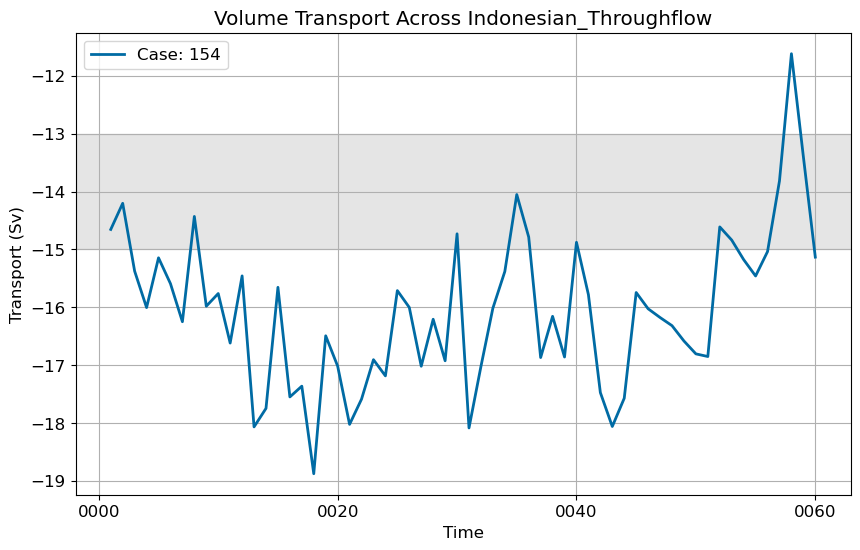

section_name = 'Indonesian_Throughflow'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

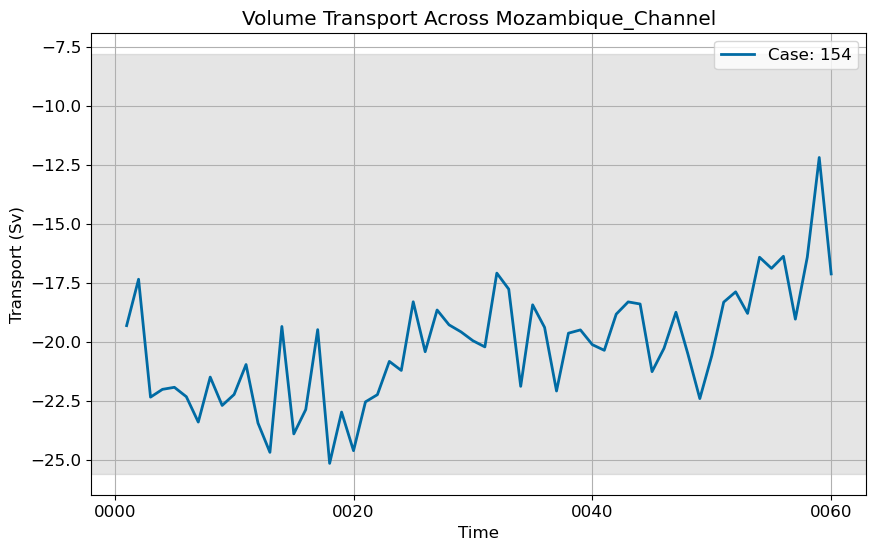

Mozambique Channel

section_name = 'Mozambique_Channel'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Pacific undercurrent

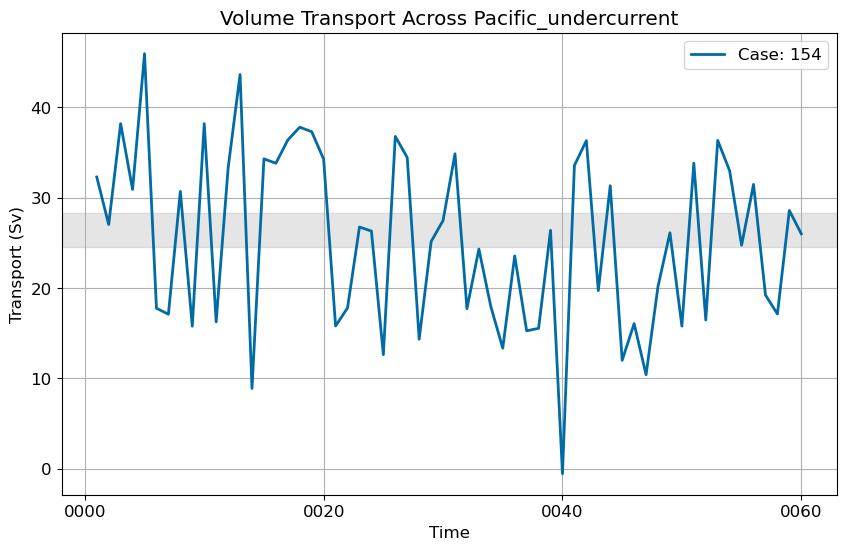

section_name = 'Pacific_undercurrent'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Taiwan Luzon

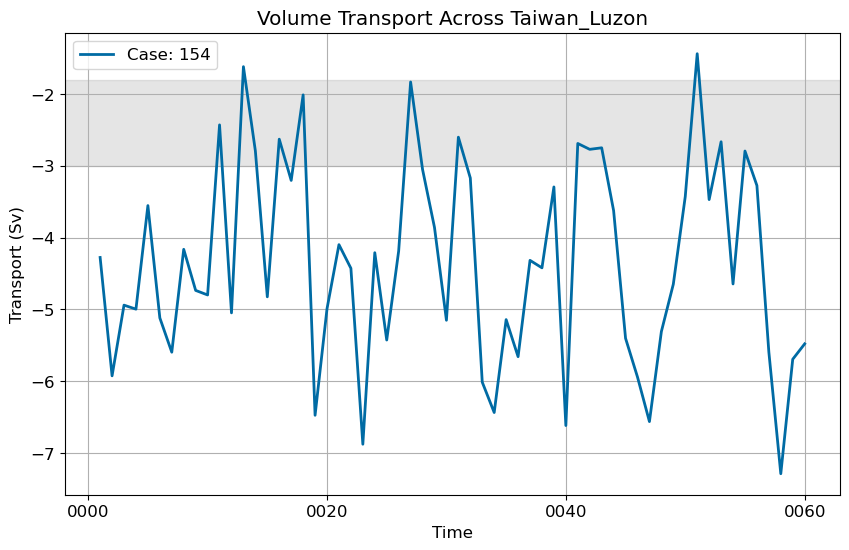

section_name = 'Taiwan_Luzon'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Windward Passage

section_name = 'Windward_Passage'
vals = get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Robeson Channel

section_name = 'Robeson_Channel'
vals = None #get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Yucatan Channel

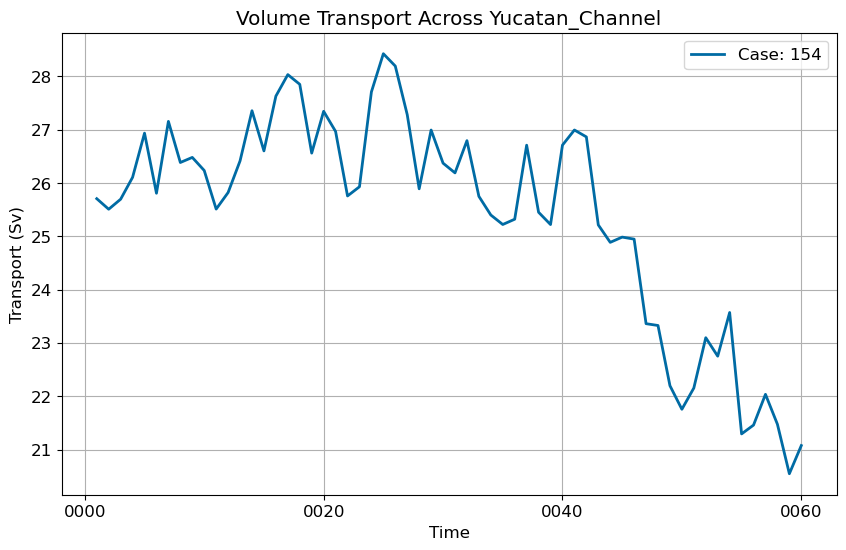

section_name = 'Yucatan_Channel'
vals = None #get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Bosporus Strait

section_name = 'Bosporus_Strait'
vals = None #get_transport_range_or_mean(diag_config_yml['Transports']['sections']['h.'+section_name])
plot_transport_time_series(transports, section_name, label, to_yearly=True, observed_values=vals)

Section 'Bosporus_Strait' not found in the '154' dataset. Skipping plot.

<Figure size 1000x600 with 0 Axes>

All sections

def plotPanel(section,n,label):
    ax = plt.subplot(7,3,n+1)
    plt.plot(section.time,section.values, lw=2, label=label)
    plt.title(section.sections.values,fontsize=12)
    plt.grid()
    if n in [0,3,6,9,12,15,18]: plt.ylabel('Transport (Sv)')

    return

fig = plt.figure(figsize=(18,18))
for n in range(0,len(ds.sections)):
  for i in range(0,len(casename)):
    plotPanel(transports[i].transport[n,:],n,label[i])

fig.text(0.5,0.9,'Case = '+str(casename[0]),horizontalalignment='center',fontsize=14)
plt.subplots_adjust(hspace=0.3)
plt.legend(fontsize=12);
